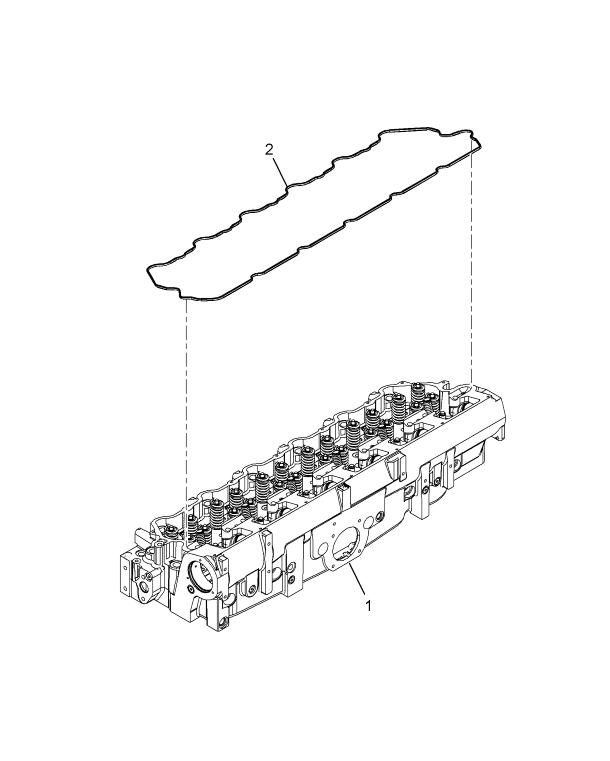

3016006C91
KIT CYLINDER HEAD W/BEARINGS
Navistar International®
DISCONTINUED
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
Engine Platform
B770 2010 MaxxForce BB 15L
OEM Description
KIT CYLINDER HEAD W/BEARINGS
Weight
601.0004 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SEAL RING BS 12.7X18-ST/FPM1-80 | 2 | 06566310105 |
| HEAD ASSEMBLY CYLINDER W/VALVES | 1 | 3007432C93 |
| STUD TAPERLOCK 3/8-16 X 2.36 | 1 | 3007142C1 |
| STUD TAPERLOCK 3/8-16 X 4 | 11 | 3007306C1 |
| SPACER 11.13 X 19.05 X 13.5 | 1 | 3007307C1 |
| SPACER 11.13 X 19.05 X 53 | 11 | 3007308C1 |
| GASKET EXHAUST SLEEVE | 6 | 3008025C1 |
| PACKING EXHAUST MANIFOLD | 2 | 7078934C1 |
| SEAL BS-16 7X24 0-ST/FPM1-80 | 1 | 06566310107 |
| GASKET VALVE | 1 | 2720390 |
| O-RING | 1 | 3007044C1 |
| SEAL BS-16 7X24 0-ST/FPM1-80 | 1 | 6566310107 |
| SEAL RING BS 12.7X18-ST/FPM1-80 | 2 | 6566310105 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007916C2 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007915C2 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007914C2 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007913C2 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007912C2 |
| FITTING ASSEMBLY 9/16-18 X 90 DEGREE | 1 | 3008609C91 |
| FITTING ASSEMBLY HOSE | 1 | 3013456C91 |
| TUBE ASSEMBLY RAIL TO INJECTOR | 1 | 3007911C2 |
CROSS REFERENCES
- RENEWED 5010858R92
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
