4041150C91
HARNESS BATTERY CABLE ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$589.95
$707.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS BATTERY CABLE ASSEMBLY

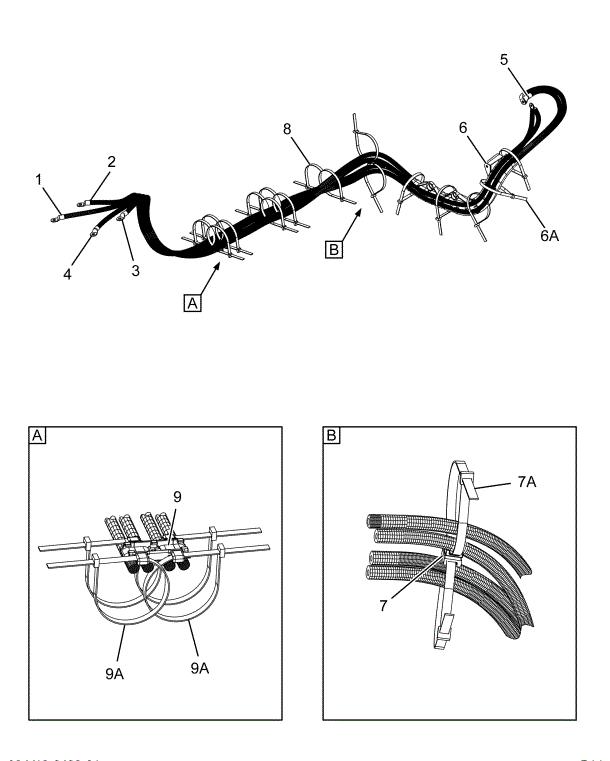

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CABLE BATTERY AS FOUND INCH CABLE POSITIVE. 4/0 BDS TO STARTER | 1 | R4X7BR1405 |
| CABLE BATTERY AS FOUND INCH CABLE BATTERY CBL 000 GAUGE | 1 | R3X7BR1400 |
| CABLE, BATTERY, NEG 000 GAUGE SGX SEALED | 1 | K3NT311325 |
| CABLE, BATTERY, POSITIVE 0000 GAUGE SGX SEALED | 1 | K4NT311345 |
| SUPPORT, CABLE BATTERY | 1 | 3803149C1 |
| GUIDE, HOSE AND CABLE SADDLE SWIVEL DUEL | 1 | 3554554C1 |
| STRAP, CABLE LOCK 250# 20" | 2 | 3626607C1 |
| SUPPORT, TUBE | 2 | 3813157C3 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
