3803739F91
HARNESS FORWARD CHASSIS, HYDRAULIC BRAKES
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS FORWARD CHASSIS, HYDRAULIC BRAKES

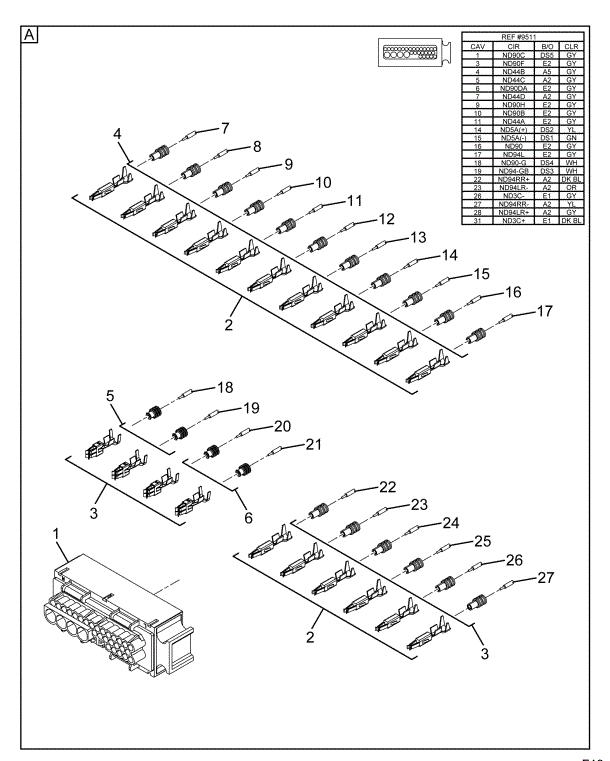

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CONNECTOR, BODY 31 WAY | 1 | 3573648C2 |
| TERMINAL, CABLE MICRO- TIMER CONTACT | 17 | 3573652C1 |
| CONNECTOR, BODY 14 WAY 2.8MM | 1 | 3618231C1 |
| TERMINAL, CABLE FRAMATOME 2.8 | 4 | 3612308C1 |
| TERMINAL, CABLE POWER TIMER | 6 | 3573654C1 |
| TERMINAL, CABLE FRAMATOME 2.8 | 6 | 3618272C1 |
| CONNECTOR, BODY 24 WAY FEMALE | 1 | 3558026C1 |
| TERMINAL, CABLE AMP JUNIOR- POWER- TIMER SOCKET 14/16 GAUGE | 2 | 3559035C1 |
| TERMINAL, CABLE AMP JUNIOR- POWER- TIMER 3 POSITION | 4 | 3509874C1 |
| SEAL, CABLE TERMINAL | 2 | 3575783C1 |
| SEAL, CABLE TERMINAL | 4 | 3532128C1 |
| SEAL, CABLE TERMINAL | 17 | 3573653C1 |
| CONNECTOR, BODY 2.8 MM APEX | 1 | 3573078C1 |
| TERMINAL, CABLE APEX FEMALE 2.8MM | 6 | 3613771C1 |
| TERMINAL, CABLE APEX FEMALE 2.8MM | 3 | 3613770C1 |
| CONNECTOR, CABLE 3 WAY MALE | 1 | 1667741C1 |
| SEAL, WIRE | 3 | 3615148C1 |
| TERMINAL, CABLE FEMALE SEALED | 2 | 1661875C1 |
| PLUG, SEALING CABLE WHITE | 2 | 3568570C1 |
| CONNECTOR, BODY 2 WAY MOTOR | 1 | 3573656C1 |
| SEAL, CABLE TERMINAL | 1 | 3509903C1 |
| CABLE, LOW TENSION BULK LOW TENSION-(18AWG WH) | 1 | 2643674R1 |
| SEAL, CABLE TERMINAL | 3 | 3573655C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
