3802101F91
HARNESS BENDIX AIR ANTILOCK BRAKE SYSTEM (ABS)-
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description

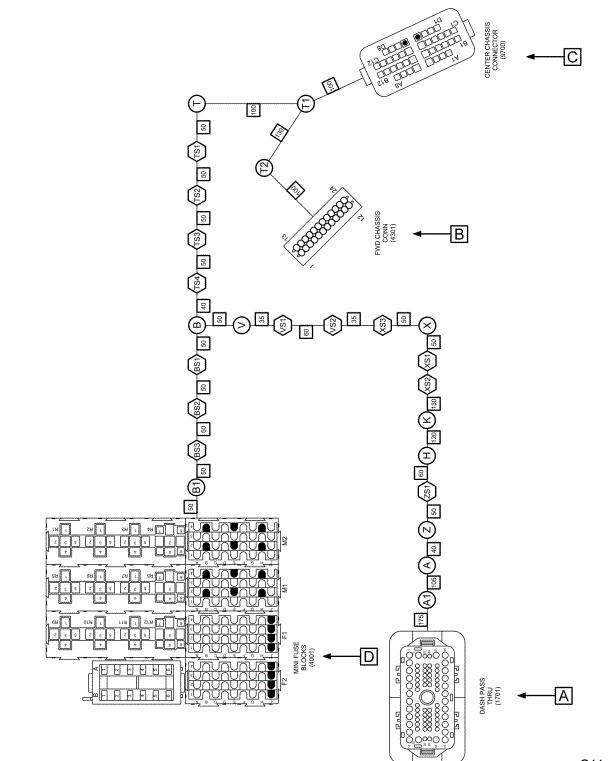

HARNESS BENDIX AIR ANTILOCK BRAKE SYSTEM (ABS)-
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CONNECTOR, BODY 76 WAY MALE | 1 | 3595624C1 |
| TERMINAL, CABLE | 18 | 3549418C1 |
| CONNECTOR, BODY 24 WAY FEMALE | 1 | 3558026C1 |
| TERMINAL, CABLE | 3 | 3549416C1 |
| TERMINAL, CABLE AMP JUNIOR- POWER- TIMER 3 POSITION | 8 | 3509874C1 |
| TERMINAL, CABLE AMP JUNIOR- POWER- TIMER SOCKET 14/16 GAUGE | 2 | 3559035C1 |
| SEAL, CABLE TERMINAL | 10 | 3509903C1 |
| CONNECTOR, BODY 38 WAY FEMALE | 1 | 3535306C1 |
| TERMINAL, CABLE CONN TERMINAL | 12 | 3535303C1 |
| PLUG, SEALING CABLE TERMINAL BLUE | 12 | 3535424C1 |
| CONNECTOR, BODY FUSE /CIRCUIT BREAKER BLOCKS FOR NGV PDC | 1 | 3534572C1 |
| CONNECTOR, BODY FUSE /CIRCUIT BREAKER BLOCKS FOR NGV PDC | 1 | 3545599C91 |
| TERMINAL, CABLE FEMALE MINIFUSE | 1 | 3573312C1 |
| TERMINAL, CABLE FEMALE MINIFUSE | 1 | 3573311C1 |
| TERMINAL, CABLE | 1 | 3549415C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
