2507647C92

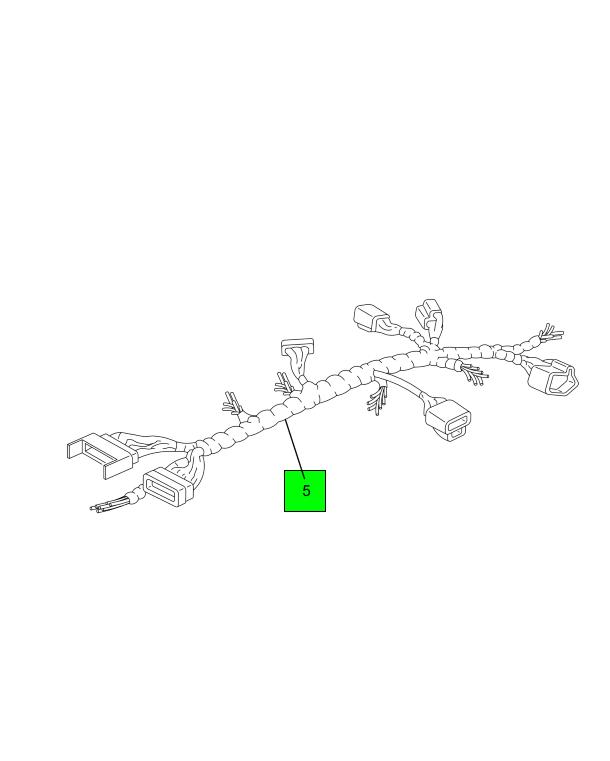

HARNESS ENGINE-SVC ASM W/V8MAN
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$499.95
$599.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL V8 ENGINE /MANUAL TRANSMISSION
Weight
9.0002 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HARNESS AMMETER | 1 | 3569806F92 |
| HARNESS ALTERNATOR WARNING LIGHT | 1 | 3569803F91 |
| HARNESS FUEL FILTER W/BODY BUILDER | 1 | 3569808F91 |
| HARNESS LOW COOLANT WIRING | 1 | 3569809F91 |
| HARNESS 2 GAUGE CHARGE | 1 | 3569802F92 |
| HARNESS BASE HARNESS W/MANUAL TRANSMISSION | 1 | 3572561F91 |
| HARNESS FREON COMPRESSOR | 1 | 3569805F91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
