2507481C91

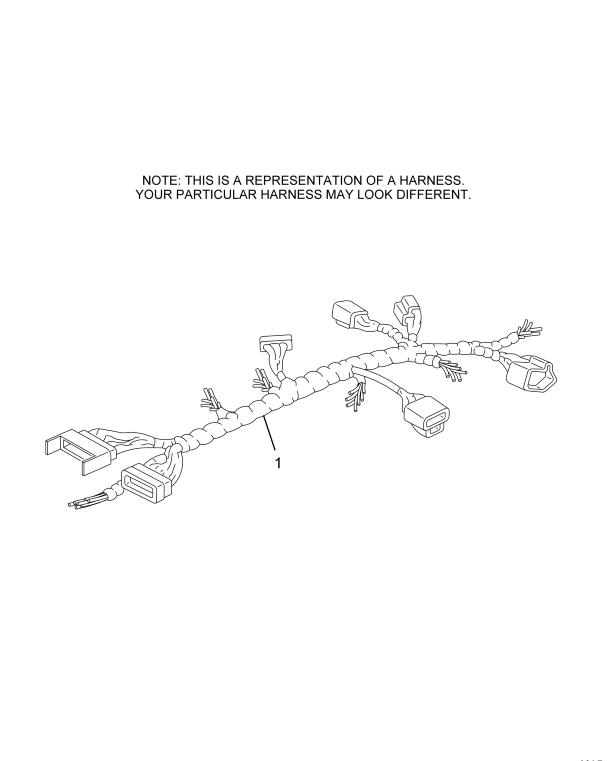

HARNESS, ELECTRICAL EXTERIOR DASH /INLINE 6 ENGINES/AIR BRAKES
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,549.95
$1,859.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HARNESS, ELECTRICAL EXTERIOR DASH /INLINE 6 ENGINES/AIR BRAKES
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HARNESS AIR SOLENOID 4 PACKAGE | 1 | 3544506F92 |
| WORK LIGHT | 1 | 3544502F92 |
| AIR ANTILOCK BRAKE SYSTEM (ABS) (ANTILOCK BRAKE SYSTEM (ABS)) | 1 | 3568481F91 |
| CEC ENGINE | 1 | 3568454F91 |
| HARNESS AIR DRYER | 1 | 3544510F92 |
| REAR REMOTE POWER UNIT ONLY | 1 | 3544490F92 |
| BASE | 1 | 3568478F91 |
| FORWARD TEMPERATURE SENDER | 1 | 3568479F91 |
| AIR CONDITION SYSTEM | 1 | 3568464F91 |
| WASHER PUMP /LEVEL SENSOR | 1 | 3568477F91 |
| HEAD LIGHTS AND FOG LIGHTS | 1 | 3544508F94 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
