3806731C91

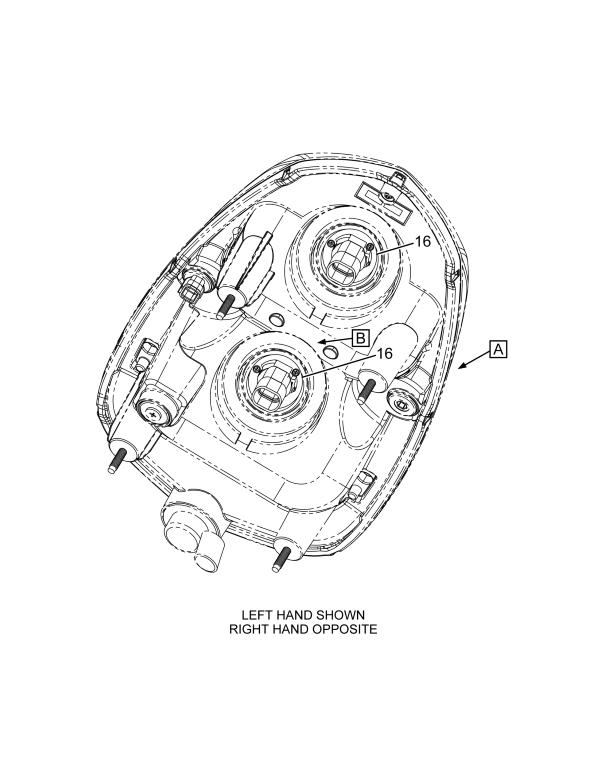

LIGHT ASSEMBLY, HEAD COMPOSITE RIGHT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$289.95
$347.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
LIGHT ASSEMBLY, HEAD COMPOSITE RIGHT
Weight
9.0002 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HOLDER, BULB HEAD LIGHT | 2 | 2601319C1 |
| CONNECTOR, BODY SEALED 2 WAY FEMALE | 1 | 3591991C1 |
| HOLDER, BULB TURN LIGHT | 1 | 2601318C1 |
| LAMP, SIDE MARKER | 1 | 2601317C1 |
| LAMP, BULB, FRONT TURN | 1 | GE3157NAKR |
| LIGHT, HEAD | 1 | GE9005XSLLBP |
| LIGHT, HEAD | 1 | GE9006XSLLBP |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
