3728925C91
LIGHT, HEAD CHR/PNT BEZ- RIGHT HAND W/BLANK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$459.95
$551.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
LIGHT, HEAD CHR/PNT BEZ- RIGHT HAND W/BLANK
Weight
11 lbs

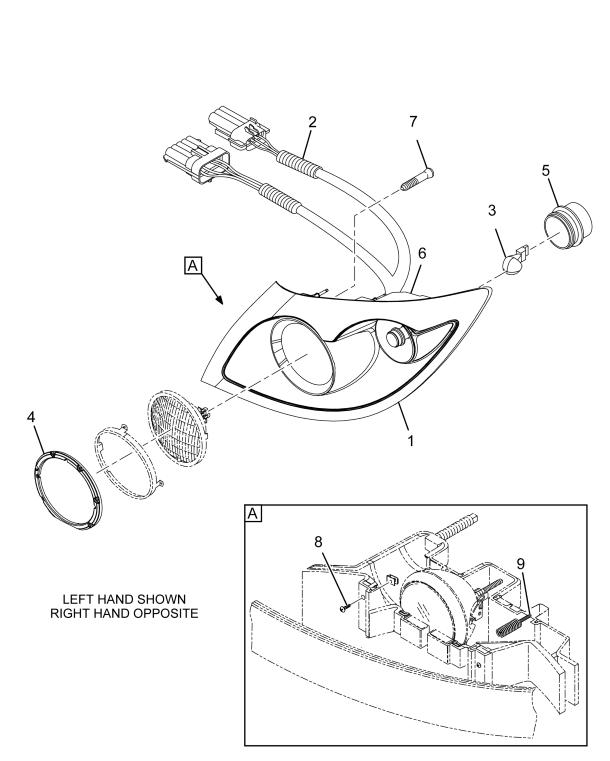

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEZEL, HEAD LIGHT RIGHT | 1 | 2589894C1 |
| RING, HEAD LIGHT TRIM, RH,LH | 1 | 2589895C1 |
| COVER, HEAD LIGHT BULB SOCKET | 1 | 2509599C91 |
| SCREW, MODULE TURN SIGNAL | 3 | 2597355C1 |
| LIGHT TURN SIGNAL LAMP RIGHT | 1 | 2589898C91 |
| SCREW, SELF- TAPPING | 4 | 2597353C1 |
| NUT, SPEED | 4 | 2509985C1 |
| PLATE | 1 | 3899101C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
