3676978C92
LIGHT, HEAD
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$319.95
$383.94
FINAL SALE. No returns or exchanges.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
LIGHT, HEAD
Weight
10.39 lbs

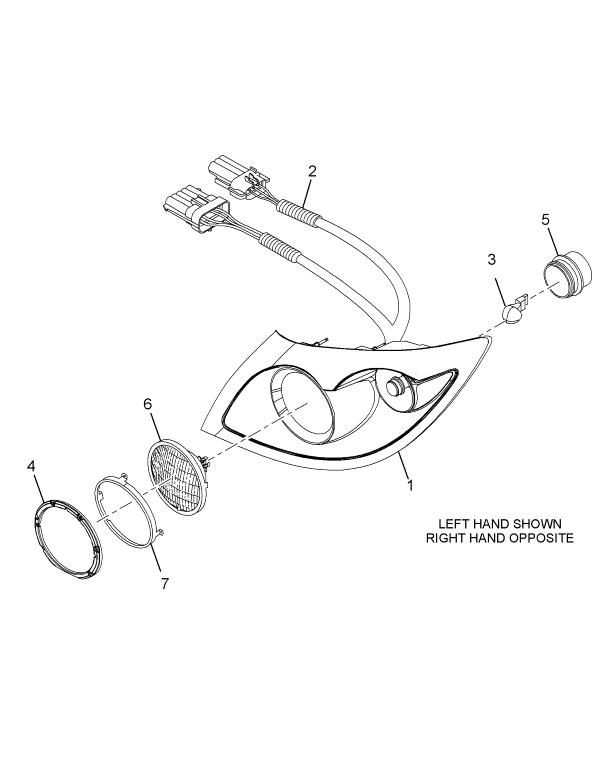

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BEZEL, HEAD LIGHT LEFT | 1 | 2589889C1 |
| HARNESS, ELECTRICAL HD LIGHT | 1 | 2589892C91 |
| LAMP, BULB, FRONT TURN | 1 | GE3157NAKR |
| RING, HEAD LIGHT TRIM, RH,LH | 1 | 2589895C1 |
| COVER, HEAD LIGHT BULB SOCKET | 1 | 2509599C91 |
| LIGHT, HALOGEN SEALED BEAM | 1 | GEH5024 |
| RING, RETAINER | 1 | 2589896C1 |
| LIGHT TURN SIGNAL LAMP LEFT | 1 | 2589893C91 |
| SCREW, SELF- TAPPING | 4 | 2597353C1 |
| SCREW, MODULE TURN SIGNAL | 6 | 2597355C1 |
| NUT, SPEED | 4 | 2509985C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
