4089448C1
SUPPORT, RIGHT HAND UPPER HAT ASSEMBLY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$259.95
$311.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SUPPORT, RIGHT HAND UPPER HAT ASSEMBLY
Weight
8.184 lbs

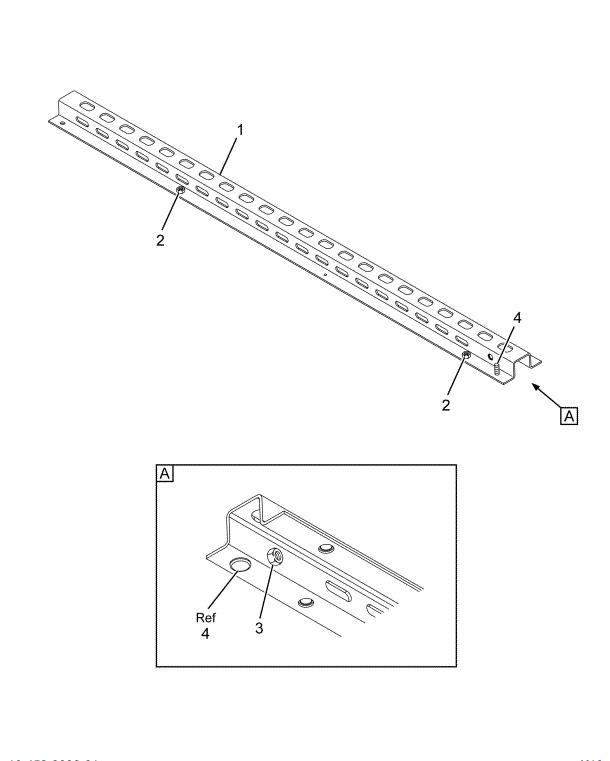

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT, RIGHT HAND UPPER HAT | 1 | 4089357C1 |
| NUT M10 X 1.5 HEXAGON SHORT PILOTED-PROJECTION | 4 | 30702R1 |
| NUT PROJECTION WELD M8 | 1 | 30696R1 |
| BOLT, WELD TYPE U3 PRO M8 X 30 | 1 | 31186R1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
