440186025
SEAT, DRIVERS BLUE PREVAIL (WHITE)
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$519.95
$623.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVERS BLUE PREVAIL (WHITE)

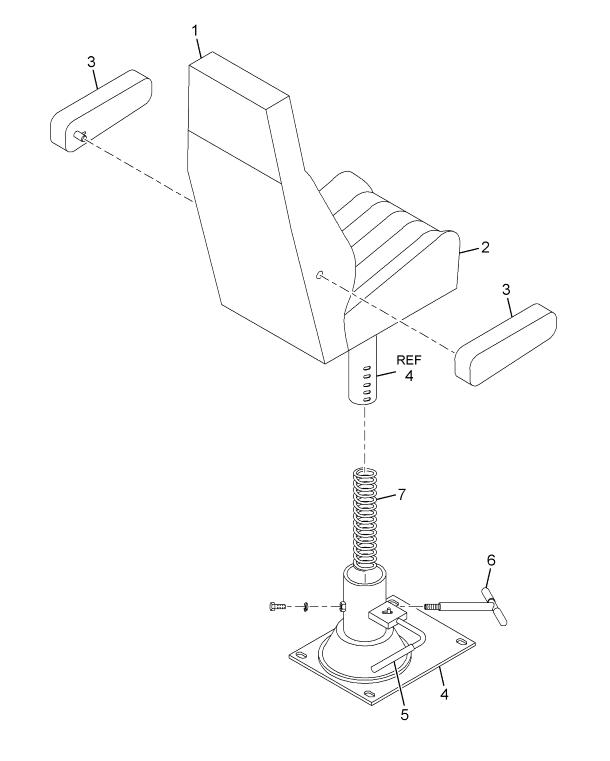

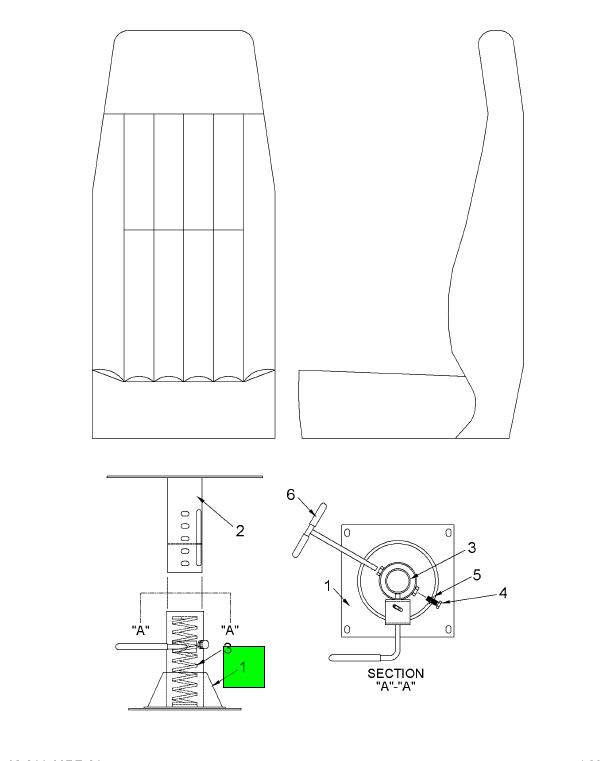

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERY SEAT BACK BLUE PREVAILL | 1 | 2585709C1 |
| FOAM SEAT BACK | 1 | 427682018 |
| FOAM SEAT CUSHION | 1 | 427682020 |
| UPHOLSTERY SEAT CUSHION BLUE PREVAILL | 1 | 2585710C1 |
| FOAM ARMREST | 1 | 427682021 |
| ARMREST | 1 | 427682022 |
| PEDESTAL, DRIVERS SEAT | 1 | 441413001 |
| PEDESTAL, DRIVERS SEAT | 1 | 94217300 |
| HANDLE ADJUSTMENT | 1 | 419909001 |
| HANDLE, "T" DRIVERS PEDESTAL | 1 | 419906001 |
| SPRING 2" OD X 7 1/4" | 1 | 419914001 |
| BELT, LOOP SEAT CE WHITE DRIVER | 1 | 427682031 |
| SPRING 5/8" OD X 1 1/4" | 1 | 419910001 |
| HANDLE DRIVERS SEAT RECLINER | 1 | 427682027 |
| CAP, END DRIVERS SEAT PEDESTAL SET OF 3 | 1 | 427682037 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
