4121688C91
SEAT,DRIVER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,799.95
$2,159.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT,DRIVER , SLP?HP?AIR,MORDURA,BELLOWS,BLK?CHERRY,HT

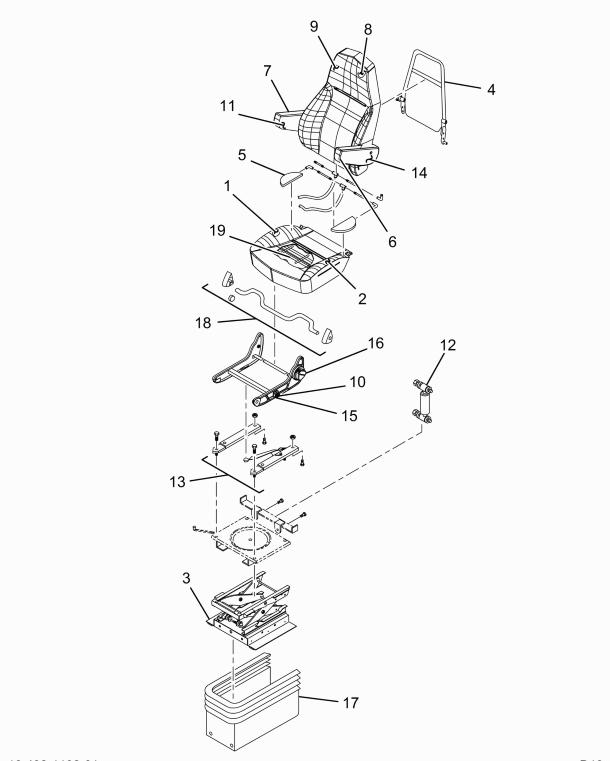

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, UPHOLSTERED BOTTOM | 1 | 2520278C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516615C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| COVER, ARMREST LEFT HAND | 1 | 2516614C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| HEATER /VENT KIT | 1 | 2519191C91 |
| CUSHION COVER BLACK CHERRY MORDURA | 1 | 2518239C1 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| FRAME, SEAT | 1 | 2519193C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516551C91 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516550C91 |
| CUSHION, UPHOLSTERED BACK | 1 | 2520279C1 |
| COVER, SEATBACK, BLACK CHERRY MORDURA | 1 | 2516532C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
