4108301C92
SEAT,DRIVER, DAYCB,AIR, MRDRA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,249.95
$2,699.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, DAYCB, AIR, MORDURA, BLACK CHERRY

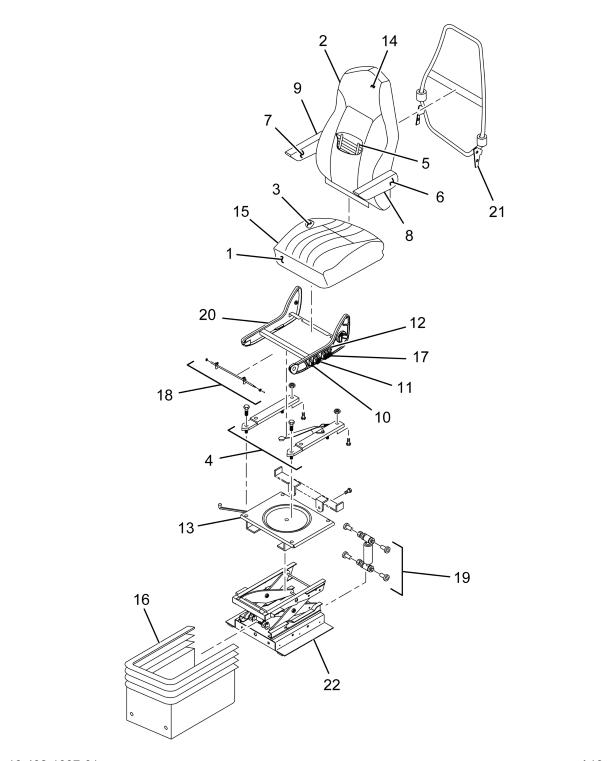

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION COVER BLACK CHERRY MORDURA | 1 | 2518239C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| COVER, SEATBACK, BLACK CHERRY MORDURA | 1 | 2516532C1 |
| UPHOLSTERED CUSHION, BLACK CHERRY MORDURA | 1 | 2518237C91 |
| KIT SEAT RISER SHRD AND BELLOWS | 1 | 2609640C91 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| KIT, SEAT ADJUSTER | 1 | 2594767C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| UPHOLSTERED BACK, BLACK CHERRY MORDURA | 1 | 2518238C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| PEDESTAL, SEAT | 1 | 2520325C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| KIT, TRACK SEAT ADJUSTING | 1 | 2594710C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516614C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516615C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516551C91 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516550C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
