4093255C91
SEAT, PASSENGER, CLOTH, SWIVEL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER, CLOTH, SWIVEL

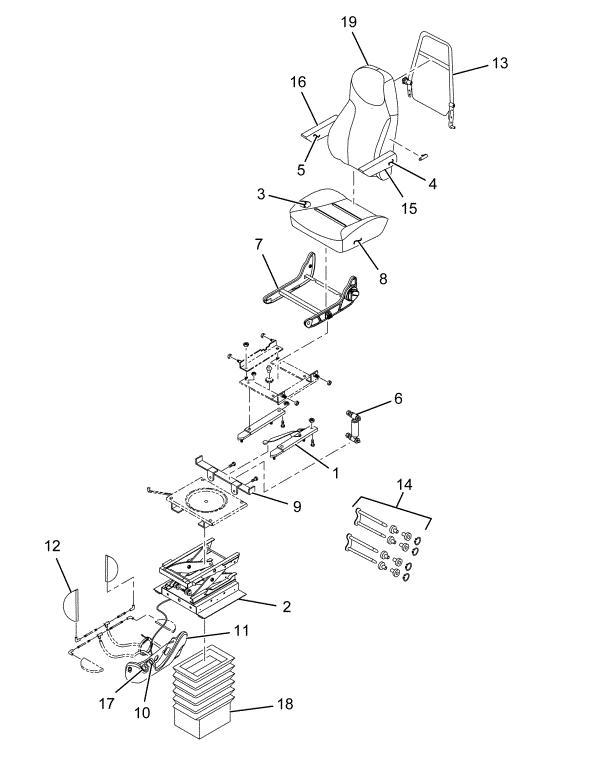

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516448C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516449C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| SHROUD, BASE COVER | 1 | 2517385C1 |
| COVER, SEAT BACK | 1 | 2517386C1 |
| UPHOLSTERED BACK | 1 | 2516619C91 |
| PEDESTAL, SEAT COMPLETE BASE | 1 | 2502320C91 |
| UPHOLSTERED CUSHION | 1 | 2515907C91 |
| ARMREST COVER LEFT HAND | 1 | 2516452C1 |
| ARMREST COVER RIGHT HAND | 1 | 2516453C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2595325C1 |
| CUSHION COVER | 1 | 2515914C1 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2501751C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
