4093253C91
SEAT, DRIVER, CLOTH, SWIVEL, HEAT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$949.95
$1,139.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, CLOTH, SWIVEL, HEAT

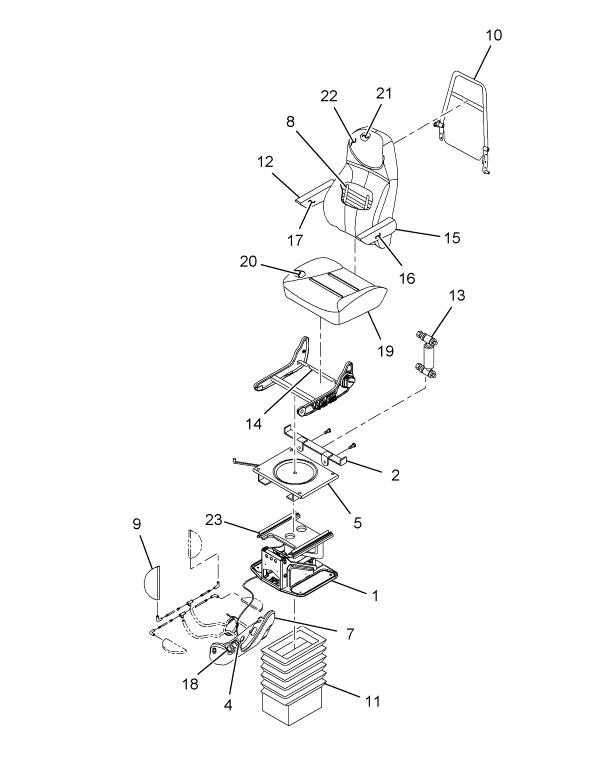

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE SEAT MOUNTING | 1 | 2608064C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| COVER, SEAT BASE | 1 | 2517574C1 |
| SEAT BASE COVER SHROUD TAN VINYL | 1 | 2516478C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516449C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR SEAT | 1 | 2608080C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516448C1 |
| ARMREST COVER LEFT HAND | 1 | 2516452C1 |
| ARMREST COVER RIGHT HAND | 1 | 2516453C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| CUSHION COVER | 1 | 2515910C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505469C1 |
| UPHOLSTERED CUSHION | 1 | 2517571C91 |
| CUSHION, UPHOLSTERED SEAT BACK | 1 | 2517572C91 |
| COVER, SEATBACK | 1 | 2517573C91 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2502879C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
