4080375C91
SEAT, DRIVER, DAY, 95 AIR, CLOTH, 2 ARM, MAP, GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$669.95
$803.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, DAY, 95 AIR, CLOTH, 2 ARM, MAP, GRAY
Weight
93 lbs

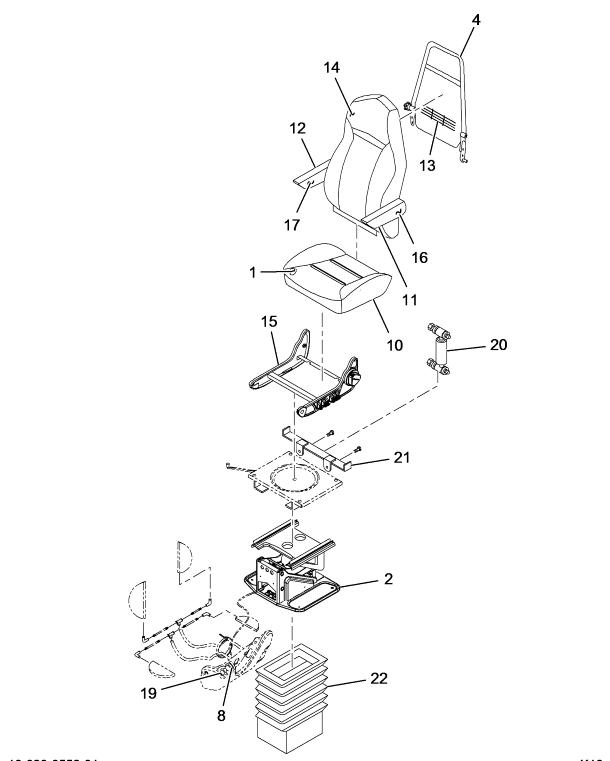

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION, CHARCOAL/BLACK CLOTH VINYL | 1 | 2516492C91 |
| COVER, SEAT CUSHION, BLACK CLOTH AND VINYL | 1 | 2516504C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516553C91 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516552C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| COVER, SEATBACK, CHARCOAL, BLACK CLOTH AND VINYL | 1 | 2516537C1 |
| UPHOLSTERED BACK | 1 | 2516571C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2512960C1 |
| KIT, SEAT BASE COVER AND SHROUD BLACK | 1 | 2508535C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| KIT, TRACK SEAT ADJUSTING | 1 | 2594710C91 |
| KIT, SHAFT SEAT WITH BUSHING | 1 | 1660393C91 |
| KIT, SEAT RISER BELLOWS | 1 | 2505472C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
