4080355C91

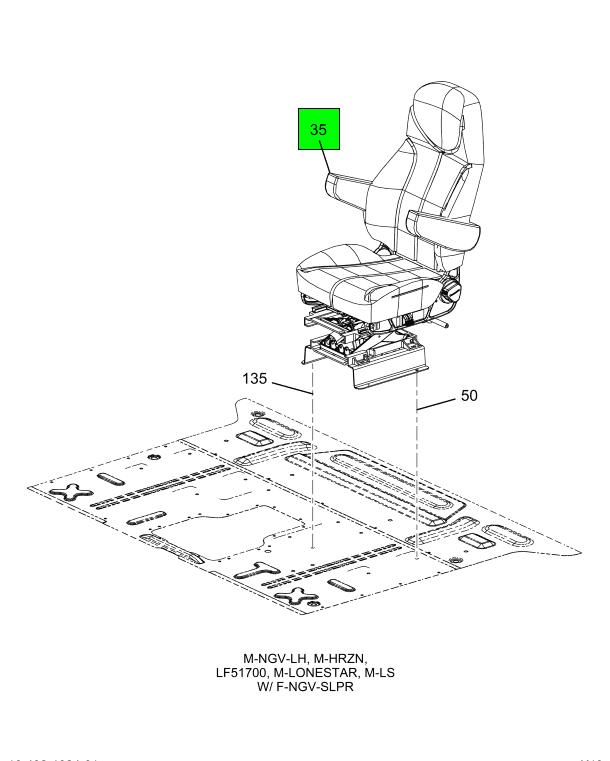

SEAT, DRIVER, DAY, 95 AIR, VINYL, MAP, GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$899.95
$1,079.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT,DRIVER , DAY, 95 AIR, VINYL, MAP, GRAY

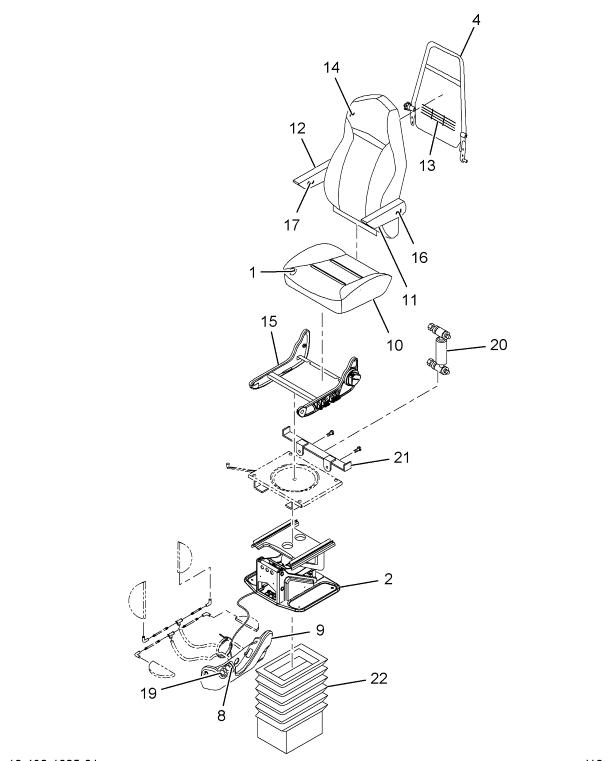

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION, CHARCOAL/BLACK VINYL | 1 | 2516494C91 |
| COVER, SEAT CUSHION, CHARCOAL/BLACK VINYL | 1 | 2516505C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516553C91 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516552C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| UPHOLSTERED BACK, CHARCOAL AND BLACK VINYL | 1 | 2516525C91 |
| COVER, SEATBACK, CHARCOAL AND BLACK VINYL | 1 | 2516539C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| BRACKET, SEAT BELT MOUNTING | 1 | 2512960C1 |
| KIT, SEAT BASE COVER AND SHROUD BLACK | 1 | 2508535C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
