4080338C91
SEAT,OCCUPANT , SLPR, AIR, CLO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, OCCUPANT, SLEEPER, AIR, CLOTH, GRAY, SWVL, BLACK CYC GRY
Weight
84.8232 lbs

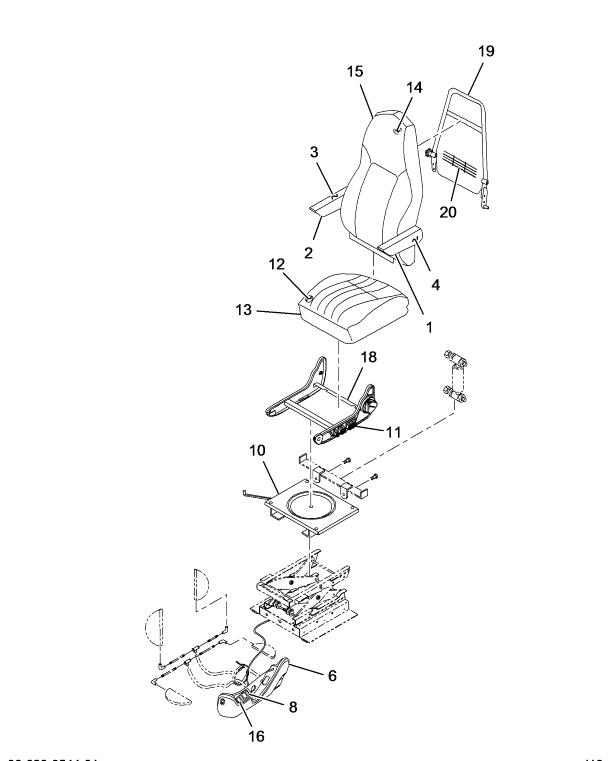

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516553C91 |
| BASE, SEAT MOUNTING SWIVEL | 1 | 2599750C1 |
| BASE, SEAT MOUNTING SWIVEL | 1 | 2595048C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| UPHOLSTERED CUSHION, CHARCOAL/BLACK CLOTH VINYL | 1 | 2516492C91 |
| COVER, SEAT CUSHION, BLACK CLOTH AND VINYL | 1 | 2516504C1 |
| UPHOLSTERED BACK, CHARCOAL, BLACK CLOTH AND VINYL | 1 | 2516522C91 |
| COVER, SEATBACK, CHARCOAL, BLACK CLOTH AND VINYL | 1 | 2516537C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| FR, LOWER SEAT Y | 1 | 2597790C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516552C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD ASSEMBLY, SEAT FOUR BUTTO | 1 | 2516559C91 |
| KIT, TRACK SEAT ADJUSTING | 1 | 2594710C91 |
| KIT, SEAT RISER | 1 | 2594713C91 |
| SHOCK ABSORBER KIT | 1 | 2512928C1 |
| MODULE MM* | 1 | 2603618C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
