4080337C91
SEAT, DRIVER, SLEEPER, HP AIR, MORDURA, BLW, MAP, GRY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$809.95
$971.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, HP AIR, MORDURA, BLW, MAP, GRY
Weight
99 lbs

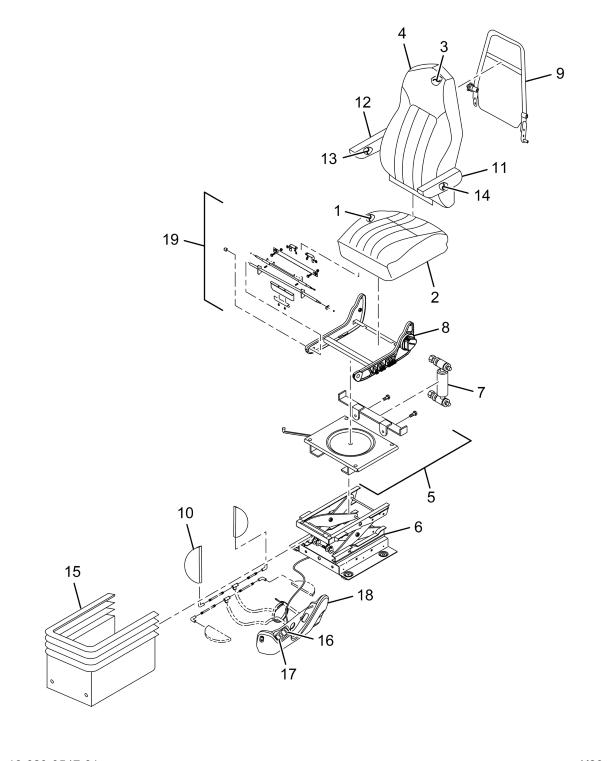

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION, BLACK CHERRY MORDURA | 1 | 2516490C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516551C91 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516550C91 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD ASSEMBLY, SEAT FOUR BUTTON | 1 | 2516558C91 |
| COVER, SEAT CUSHION, BLACK CHERRY MORDURA | 1 | 2516503C1 |
| UPHOLSTERED BACK, BLACK CHERRY MORDURA | 1 | 2516513C91 |
| COVER, SEATBACK, BLACK CHERRY MORDURA | 1 | 2516532C1 |
| BASE, SEAT PEDESTAL | 1 | 2516545C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
