4080332C91
SEAT, DRIVER, SLEEPER, HP AIR, CLTH, BLW, SWL, MAP, BACK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, HP AIR, CLTH, BLW, SWL, MAP, BACK
Weight
115 lbs

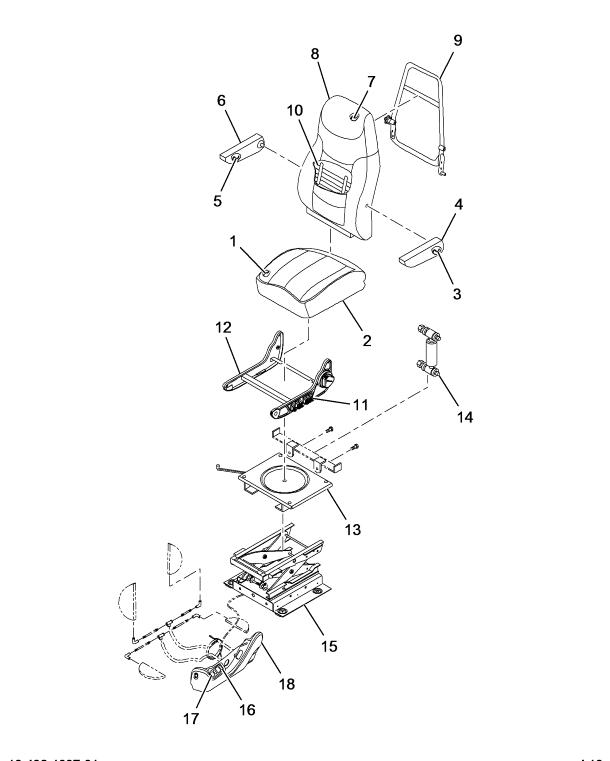

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION, CHARCOAL/BLACK LEATHER AND VINYL | 1 | 2516499C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| ABSORBER, SHOCK ABSORBER, SEAT | 1 | 2614927C91 |
| BASE, SEAT PEDESTAL | 1 | 2516547C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD SEAT AIR | 1 | 2603617C1 |
| COVER, SEAT CUSHION, CHARCOAL/BLACK LEATHER AND VINYL | 1 | 2516507C1 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516553C91 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516552C91 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| UPHOLSTERED SEAT BACK | 1 | 2516599C91 |
| SEAT BACK COVER | 1 | 2516602C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
