4080328C92
SEAT, PASSENGER, AIR, HIGH BACK, MORDURA CLOTH, CHRY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,599.95
$1,919.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, PASSENGER, AIR, HIGH BACK, MORDURA CLOTH, CHRY
Weight
94.6022 lbs

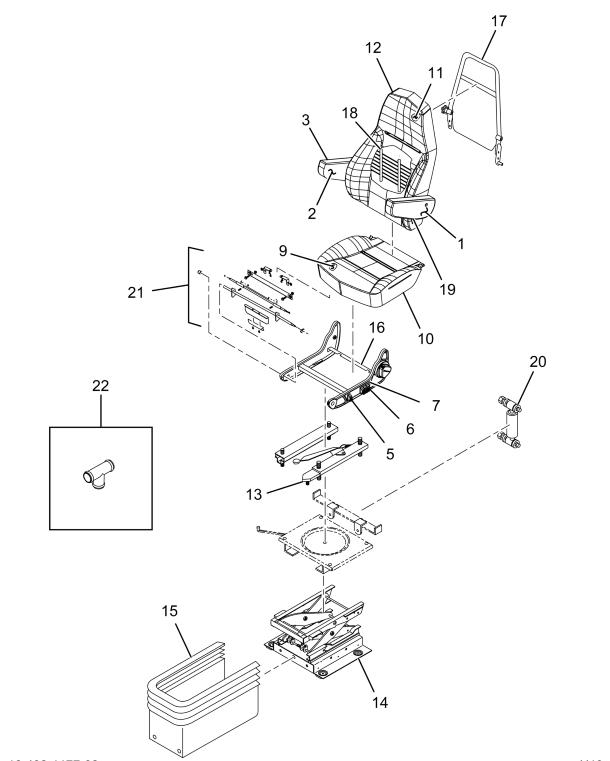

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516551C91 |
| COVER, SEAT CUSHION, BLACK CHERRY MORDURA | 1 | 2516503C1 |
| UPHOLSTERED BACK, BLACK CHERRY MORDURA | 1 | 2516514C91 |
| COVER, SEATBACK, BLACK CHERRY MORDURA | 1 | 2516533C1 |
| PEDESTAL, SEAT | 1 | 2520325C1 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516550C91 |
| TEE HOSE | 1 | 2610157C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD ASSEMBLY, SEAT FOUR BUTTON | 1 | 2516558C91 |
| UPHOLSTERED CUSHION, BLACK CHERRY MORDURA | 1 | 2516489C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
