4080282C91
SEAT,DRIVER , DAYCAB, AIR, CLO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,299.95
$1,559.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, DAYCAB, AIR, CLOTH, HIGH, GRAY, DUAL DAMP
Weight
96.8 lbs

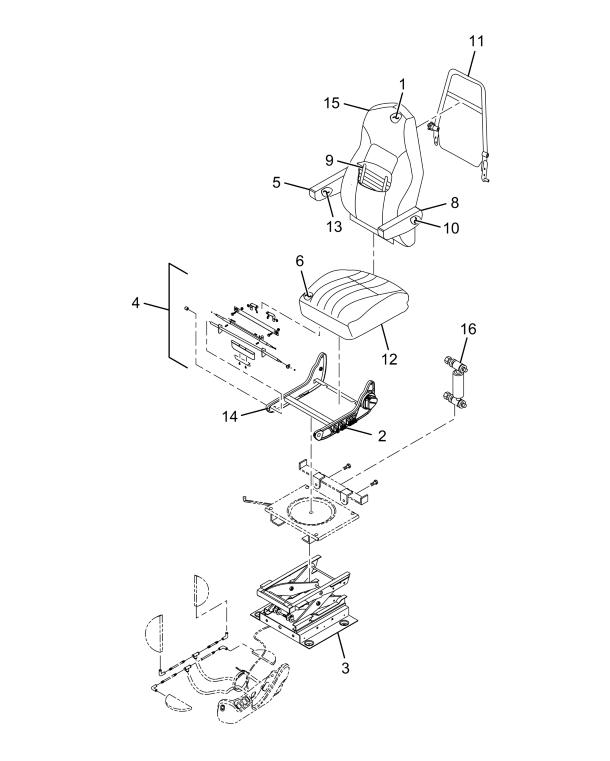

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED BACK, BLACK CLOTH AND VINYL | 1 | 2516524C91 |
| UPHOLSTERED ARMREST LEFT HAND | 1 | 2516553C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| COVER, SEAT CUSHION, BLACK CLOTH AND VINYL | 1 | 2516504C1 |
| UPHOLSTERED ARMREST RIGHT HAND | 1 | 2516552C91 |
| FR, SEAT LOWER | 1 | 2594709C1 |
| COVER, SEATBACK, CHARCOAL, BLACK CLOTH AND VINYL | 1 | 2516538C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| PEDESTAL, SEAT | 1 | 2510995C91 |
| COVER, ARMREST RIGHT HAND | 1 | 2516556C1 |
| UPHOLSTERED CUSHION, CHARCOAL/BLACK CLOTH VINYL | 1 | 2516492C91 |
| COVER, ARMREST LEFT HAND | 1 | 2516557C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
