4069440C91
SEAT,DRIVER , AIR RIDE PREMIUM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$5,999.95
$7,199.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, AIR RIDE PREMIUM LEATHER

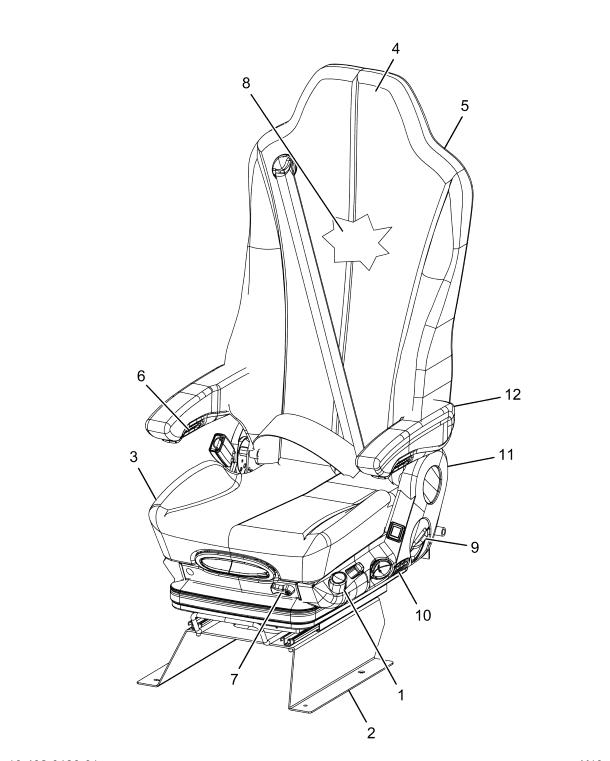

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BOLT 1.25 X 16 | 1 | 2608620C1 |
| BRACKET REINFORCEMENT REAR | 1 | 2608621C1 |
| INSERT PLUS PAD BACK | 1 | 2608630C1 |
| CUSHION FOAM PAD | 1 | 2608746C1 |
| SEAL SEAT STRUCTURE | 1 | 2608750C1 |
| REST, ARM LEFT HAND | 1 | 2608677C1 |
| FASTENER XMAS TREE CUSHION TRIM | 1 | 2608624C1 |
| COVER, SEAT BACK | 1 | 2516618C1 |
| BOARD HARD | 1 | 2608753C1 |
| INSERT PLUS PAD CUSHION | 1 | 2608626C1 |
| INSERT BOLSTER PAD | 1 | 2605655C1 |
| BOLT SOCKET HEAD 1.25 X 20 | 1 | 2608623C1 |
| HOSE AIR CONNECTOR ASSEMBLY | 1 | 2608622C1 |
| RISER SEAT SUPPORT ASSEMBLY | 1 | 2597701C1 |
| COVER SEAT CUSHION | 1 | 2608751C1 |
| PAD, FOAM BACK PAD | 1 | 2608631C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
