4046813C91
SEAT ,PSGR STATIC MORDURA GRAY, TWO ARMS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,549.95
$1,859.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT ,PSGR STATIC MORDURA GRAY, TWO ARMS
Weight
41.8 lbs

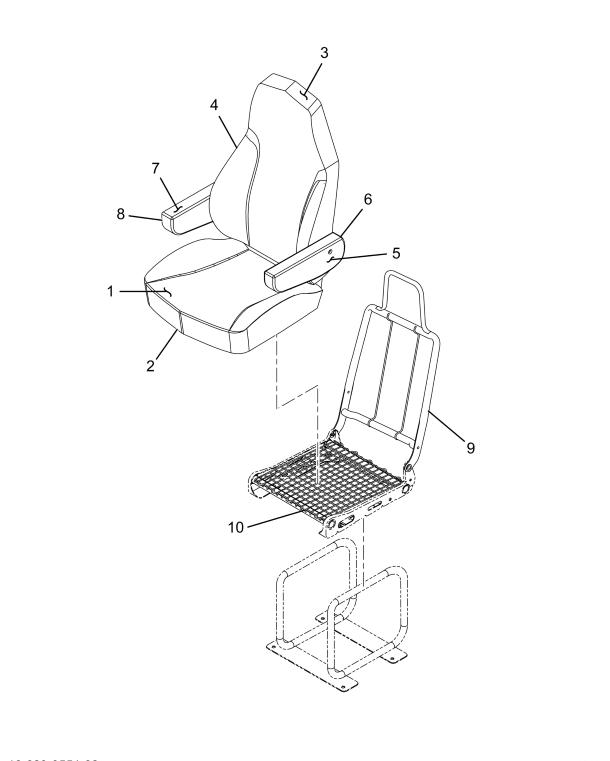

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| COVER, CUSHION COVER | 1 | 2513833C1 |
| SPRING, CUSHION | 3 | 2516482C1 |
| CLIP, CUSHION, SPRING | 6 | 2519815C91 |
| CUSHION SEAT INDV SEAT | 1 | 2608166C1 |
| COVER, BACK COVER | 1 | 2513841C1 |
| CUSHION, SEAT BACK | 1 | 2513821C1 |
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2607238C1 |
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2513852C1 |
| ARMREST COVER, LH, CHRCL MORDURA | 1 | 2607240C1 |
| ARMREST COVER, LH, CHRCL MORDURA | 1 | 2513860C1 |
| ARMREST, UPHOLS ARMREST RIGHT HAND | 1 | 2607239C1 |
| ARMREST, UPHOLS ARMREST RIGHT HAND | 1 | 2513853C1 |
| ARMREST COVER, RIGHT HAND, CHRCL MORDURA | 1 | 2513861C1 |
| FR, BACK FR | 1 | 2513849C1 |
CROSS REFERENCES
- NATL ST 11076.2100_1
- NATL ST 11076.2100_1
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
