4044064C91
W/A/R High Air Suspension Dual Shock Absorber Cloth Luminous Driver Seat
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,349.95
$1,619.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, HIGH AIR SUSPENSION DUAL SHOCK ABSORBER CLOTH LUM W/A/R

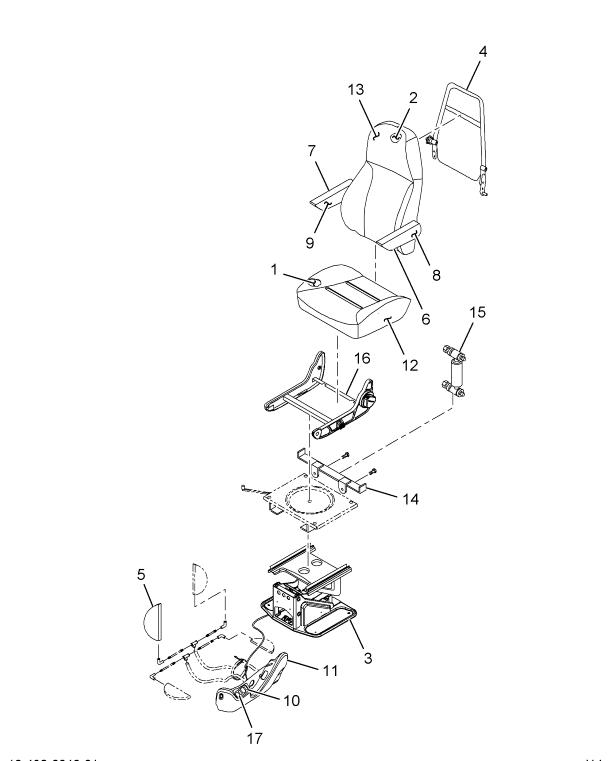

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION, CLOTH AND VINYL, GRAY | 1 | 2513250C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| CUSHION COVER | 1 | 2513266C1 |
| BACK COVER | 1 | 2513299C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| UPHOLSTERED SEATBACK, | 1 | 2513281C91 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| REST, ARM SEAT LH GRY VN | 1 | 2606399C1 |
| REST, ARM SEAT LH GRY VN | 1 | 2505893C1 |
| REST, ARM SEAT RIGHT HAND GRY VN | 1 | 2606400C1 |
| REST, ARM SEAT RIGHT HAND GRY VN | 1 | 2505894C1 |
| ARMREST COVER LH | 1 | 2606401C1 |
| ARMREST COVER RIGHT HAND | 1 | 2606402C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
