4025259C91
SEAT,DRIVER , SLPR, AIR, VINYL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$959.95
$1,151.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, VINYL, GRAY, NO SWVL, 2 POSITIVE
Weight
110.7678 lbs

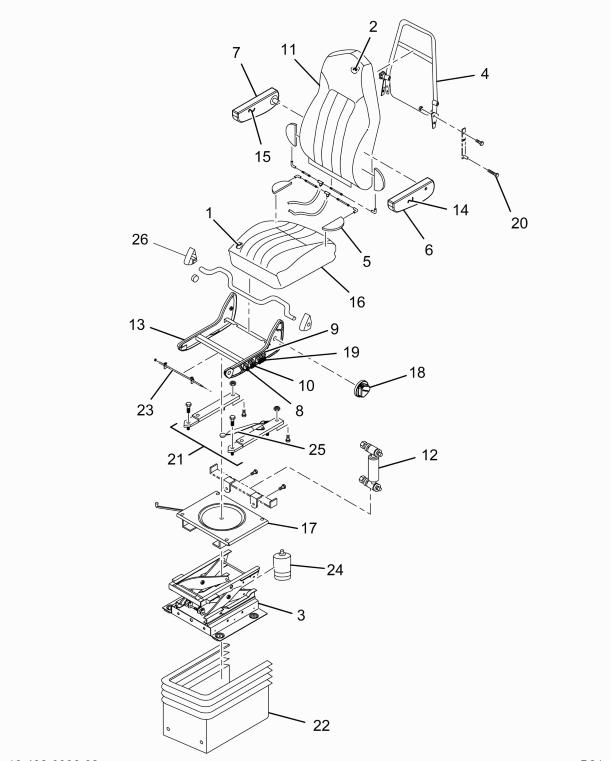

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT CHRCL MORDURA | 1 | 2607246C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER BACK CUSHION HIGH CHRCL MORDU | 1 | 2607248C1 |
| ABSORBER, SHOCK ABSORBER, SEAT | 1 | 2614927C91 |
| FRAME, SEAT | 1 | 2598069C1 |
| COVER ARMREST LH | 1 | 2607240C1 |
| COVER ARMREST RIGHT HAND | 1 | 2607241C1 |
| COVER SEAT CUSHION CHRCL MORDURA | 1 | 2607247C1 |
| BASE, SEAT MOUNTING SWIVEL | 1 | 2599750C1 |
| BASE, SEAT MOUNTING SWIVEL | 1 | 2595048C1 |
| KNOB, RECLINE SEAT BACK | 1 | 2595135C1 |
| CUSHION BACK HIGH CHRCL MORDURA | 1 | 2607245C91 |
| PEDESTAL, SEAT | 1 | 2510995C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| ARMREST AND COVER- GRAY LEFT HAND | 1 | 2607238C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| BOLT, SPECIAL BACKREST ADJUSTER KNOB | 1 | 1685452C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
