4025253C91
SEAT, PASSENGER, SLEEPER, AIR, CLOTH, RED, NO SWVL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$849.95
$1,019.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER, SLEEPER, AIR, CLOTH, RED, NO SWVL

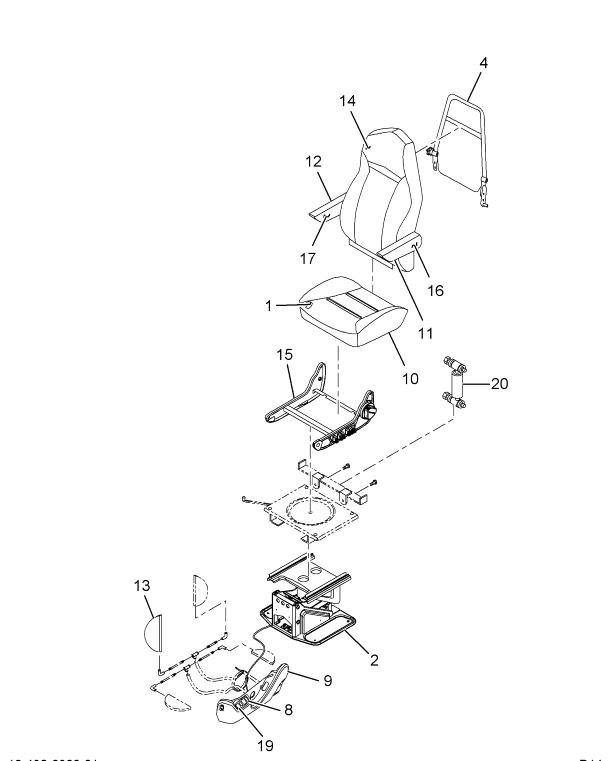

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT RED BRICK CLOTH AND VINYL | 1 | 2607805C91 |
| COVER SEAT CUSHION RED BRICK CLOTH AND VINYL | 1 | 2607807C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| COVER BACK CUSHION RED BRICK CLOTH AND VINYL | 1 | 2607796C1 |
| UPHOLSTERED BACK BRICK CLOTH AND VINYL | 1 | 2516467C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| KIT, SEAT BASE COVER AND SHROUD BLACK | 1 | 2508535C91 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
