3989592C91
SEAT,DRIVER , DAYCB,AIR, MRDRA
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,249.95
$1,499.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, DAYCB, AIR, MRDRA,
Weight
116.6022 lbs

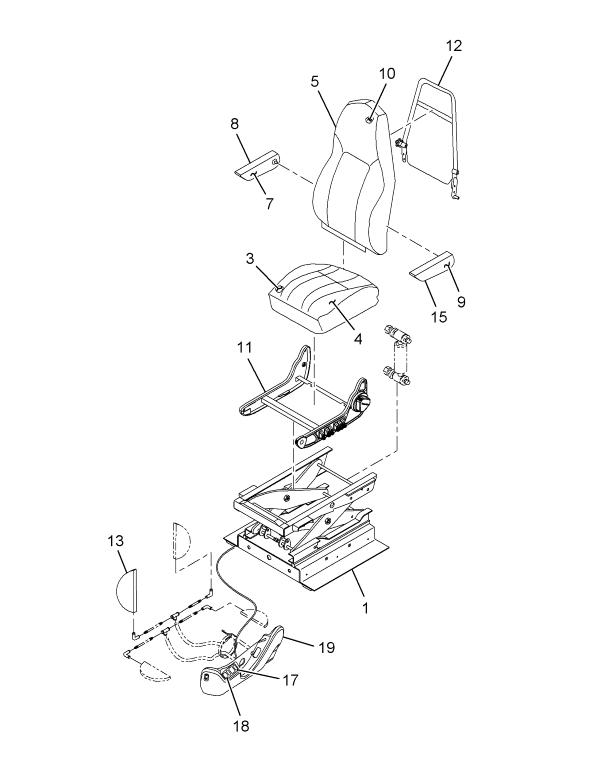

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PEDESTAL, SEAT | 1 | 2510995C91 |
| ASSEMBLY SEAT BACK CUSHION W/UPHOLSTERY | 1 | 2511693C91 |
| FR, SEAT LOWER | 1 | 2594755C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| ARMREST AND COVER- GRAY LEFT HAND | 1 | 2607238C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
| CUSHION SEAT INDV SEAT | 1 | 2607842C91 |
| COVER SEAT CUSHION CHRCL MORDURA | 1 | 2607247C1 |
| COVER BACK CUSHION | 1 | 2607815C1 |
| COVER ARMREST RIGHT HAND | 1 | 2607241C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| COVER ARMREST LH | 1 | 2607240C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
