3989131C91
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, SWVL, DL ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,299.95
$1,559.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, SWVL, DL ARM
Weight
100 lbs

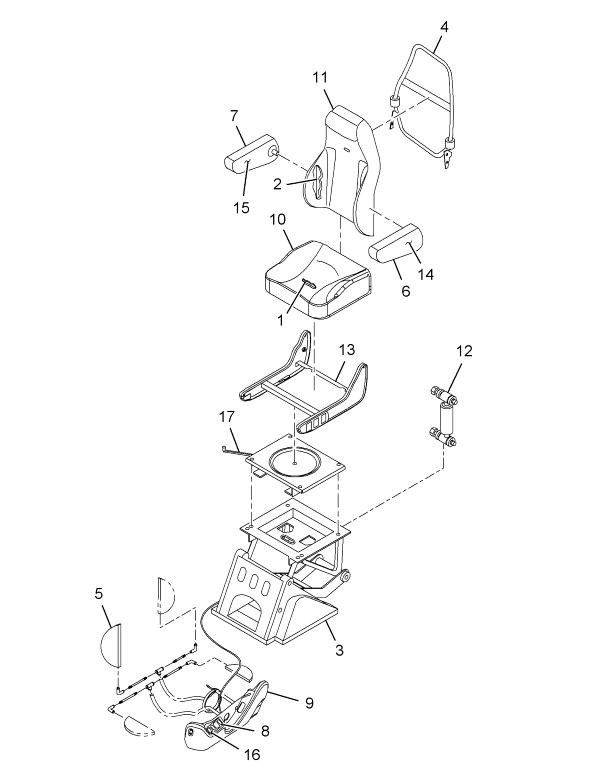

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| UPHOLSTERED CUSHION | 1 | 2512956C1 |
| CUSHION COVER | 1 | 2512957C1 |
| COVER BACK CUSHION HIGH CHRCL MORDU | 1 | 2607248C1 |
| ABSORBER, SHOCK ABSORBER, SEAT | 1 | 2614927C91 |
| FR, SEAT LOWER | 1 | 2594758C1 |
| ARMREST AND COVER- GRAY LEFT HAND | 1 | 2607238C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| BASE, SWIVEL DRIVER | 1 | 2599748C1 |
| CUSHION BACK INDV SEAT | 1 | 2607843C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| COVER ARMREST LH | 1 | 2607240C1 |
| COVER ARMREST RIGHT HAND | 1 | 2607241C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| MANIFOLD ASSEMBLY | 1 | 2594766C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
