3925262C91
SEAT,DVR HI BACK, AIR, TAN CLO
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$719.95
$863.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH BACK, AIR, TAN CLOTH, SLEEPER

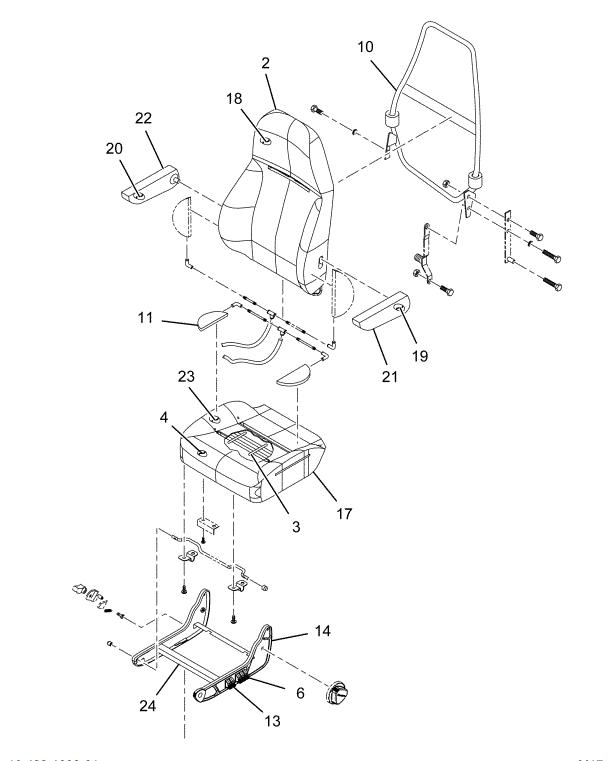

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, BACK FR | 1 | 2515948C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| KIT, COVER SEAT BASE CHARCOAL | 1 | 2596019C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT SIX BUTTON | 1 | 2505474C1 |
| BASE, DRIVER SEAT MOUNTING SWIVEL W/TAN HANDLE | 1 | 2508983C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505469C1 |
| UPHOLSTERED CUSHION, TAN | 1 | 2518240C91 |
| UPHOLSTERED SEAT BACK, TAN | 1 | 2518241C91 |
| UPHOLSTERED ARMREST, LEFT HAND TAN | 1 | 2518242C91 |
| COVER, SEAT BACK, TAN | 1 | 2518247C91 |
| UPHOLSTERED ARMREST, RIGHT HAND TAN | 1 | 2518243C91 |
| COVER, ARMREST, LEFT HAND, TAN | 1 | 2518244C1 |
| COVER, ARMREST, RIGHT HAND, TAN | 1 | 2518245C1 |
| COVER, SEAT CUSHON, TAN | 1 | 2518246C91 |
| FR, LOWER SEAT | 1 | 2586959C1 |
| HEATER, SEAT | 1 | 2518223C91 |
| KIT, AIR LUMBAR SEAT | 1 | 2509416C91 |
| KIT, SEAT RISER BELLOWS | 1 | 2505472C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2502879C91 |
| PEDESTAL, SEAT | 1 | 2505381C91 |
| KIT, SHAFT SEAT WITH BUSHING | 1 | 1660393C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
