3855073C92

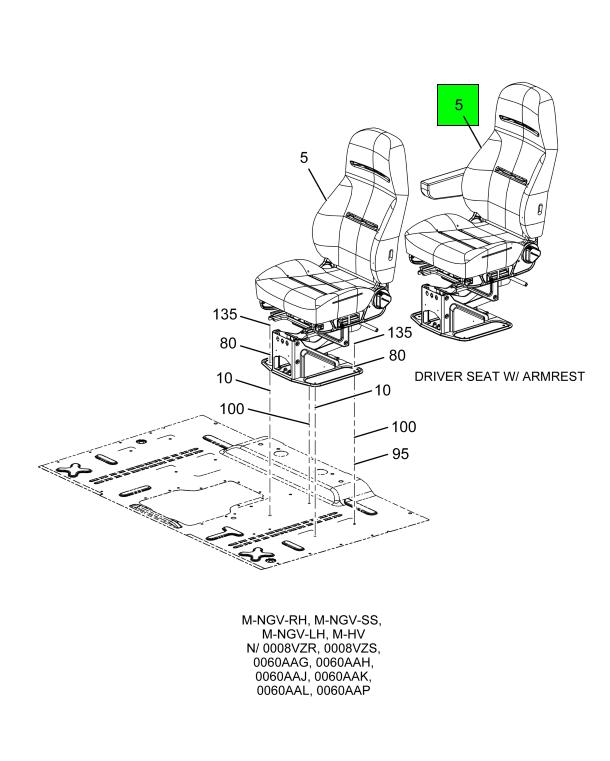

SEAT, DRIVER MID AIR SUSPENSION CLOTH LUMBAR W/A/R
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
016-005-000
OEM Description
SEAT, DRIVER MID AIR SUSPENSION CLOTH LUMBAR W/A/R

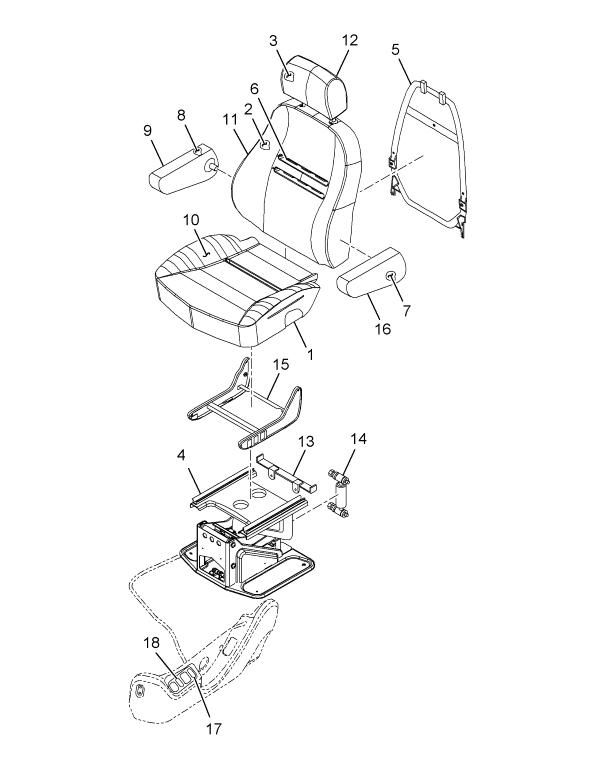

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REST HEAD COVER | 1 | 2603324C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| REST HEAD UPHOLSTERED | 1 | 2603320C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, MID BACK SEAT | 1 | 2590224C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| REST ARM | 1 | 2607100C1 |
| REST ARM RIGHT HAND | 1 | 2607101C1 |
CROSS REFERENCES
- NATL ST 50776.42AB251
- NATL ST 50776.42AB251
- NATL ST 5077642AB25
- NATL ST 5077642AB25
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
