3733195C92
SEAT, DRIVER, AIR, CLOTH, HIGH, GRAY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,099.95
$1,319.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, DRIVER, AIR, CLOTH, HIGH, GRAY

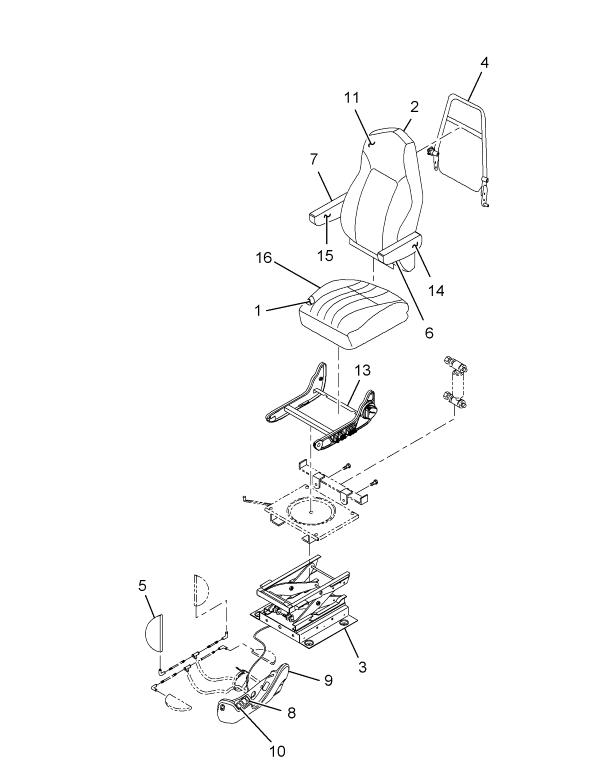

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT GRAY /BLACK | 1 | 2510005C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| UPHOLSTERY, SEAT BACK, BLACK /GRAY LV | 1 | 2510008C1 |
| FR, SEAT LOWER | 1 | 2594755C1 |
| COVER SEAT ARMREST LH | 1 | 2607773C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2607774C1 |
| UPHOLSTERY, SEAT CUSHION, BLACK /GRAY LV | 1 | 2510007C1 |
| SEAT BACK ASSEMBLY GRAY /BLACK | 1 | 2510006C91 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST ARM LEFT HAND | 1 | 2607764C1 |
| REST ARM RIGHT HAND | 1 | 2607765C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
CROSS REFERENCES
- NATL ST 4003154CF31B2
- NATL ST 4003154CF31B2
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
