3730373C91
SEAT,PASSENGER , SUSP CLOTH, G
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$869.95
$1,043.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER SUSPENSION MODURA CLOTH, GRAY, LEFT ARMREST

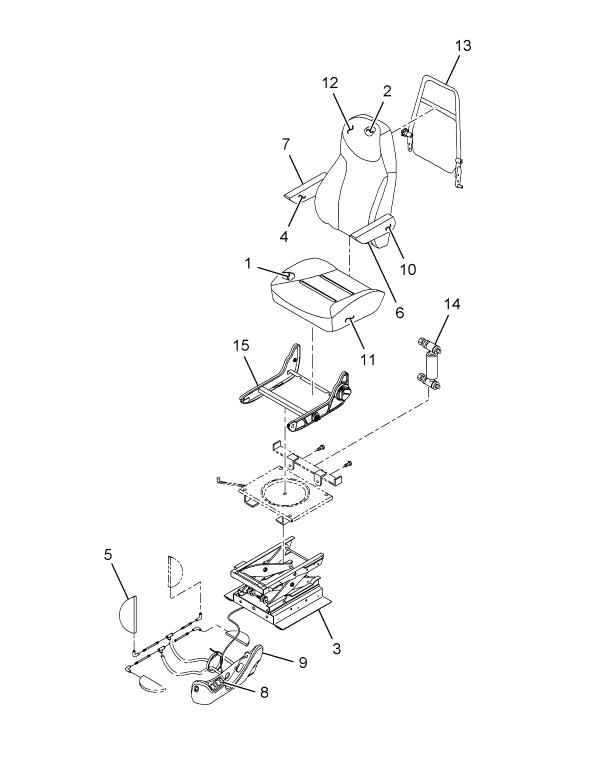

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FRAME, SEAT BACK | 1 | 2597791C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| PEDESTAL SEAT | 1 | 2603335C91 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
