3729757C92
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, NO SWVL, RIGHT ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$779.95
$935.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, MORDURA, GRAY, NO SWVL, RIGHT ARM
Weight
116.6022 lbs

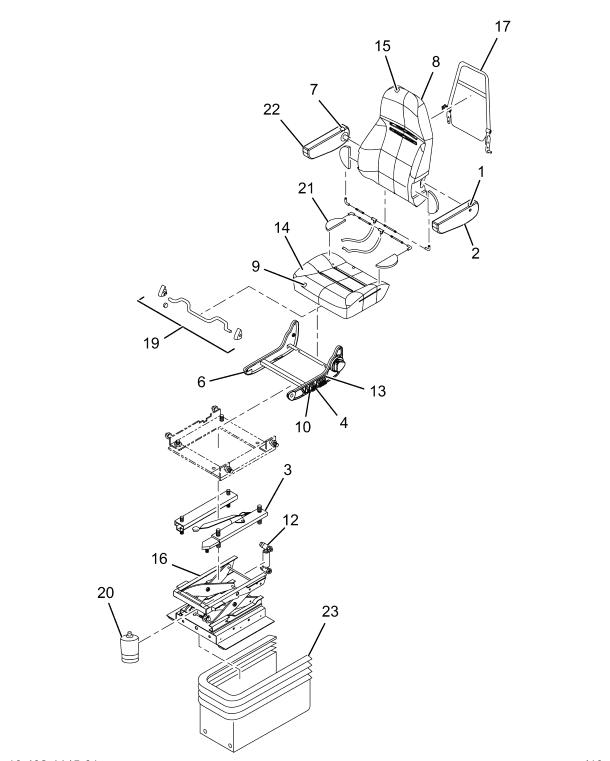

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2607238C1 |
| ARMREST, UPHOLSTERED ARMREST LH | 1 | 2513852C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| CUSHION SEAT CHRCL MORDURA | 1 | 2607246C91 |
| CUSHION, UPHOLSTERED SEAT BACK | 1 | 2519895C1 |
| PEDESTAL SEAT | 1 | 2607799C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| ARMREST COVER, LH, CHRCL MORDURA | 1 | 2607240C1 |
| ARMREST COVER, LH, CHRCL MORDURA | 1 | 2513860C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| ARMREST AND COVER, GRAY RIGHT HAND | 1 | 2607239C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| FR, SEAT LOWER | 1 | 2610228C1 |
| ARMREST COVER, RIGHT HAND, CHRCL MORDURA | 1 | 2513861C1 |
| COVER, SEATBACK CHARCOAL MORDURA | 1 | 2607248C1 |
| COVER, SEATBACK CHARCOAL MORDURA | 1 | 2516531C1 |
| COVER SEAT CUSHION CHRCL MORDURA | 1 | 2607247C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
