3725173C92
SEAT, DRIVER, SLEEPER, AIR, MORDURA, BLACK, DL ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER, SLEEPER, AIR, MORDURA, BLACK, DL ARM
Weight
86.8186 lbs

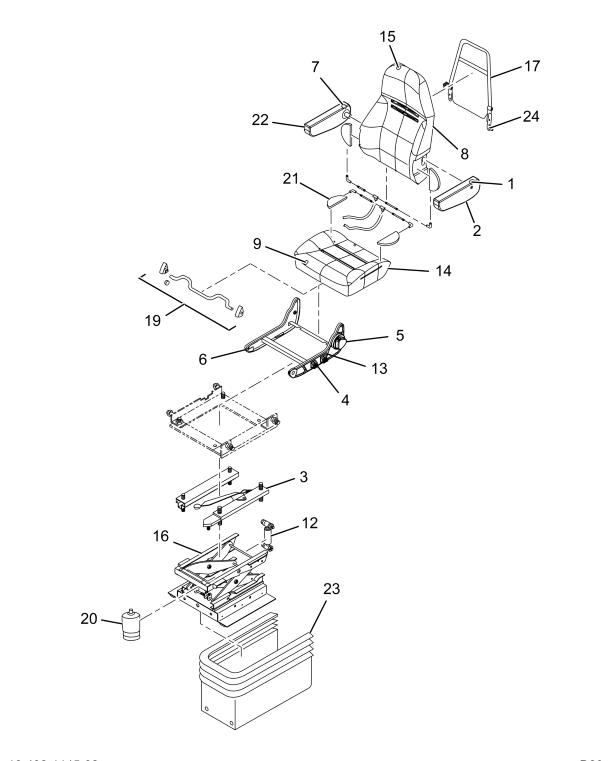

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| REST ARM | 1 | 2607100C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| CUSHION SEAT INDV SEAT | 1 | 2608426C1 |
| SEAT BACK COVER | 1 | 2519192C91 |
| PEDESTAL SEAT | 1 | 2603335C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| COVER ARMREST | 1 | 2607103C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM RIGHT HAND | 1 | 2607101C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| KIT, SEAT BACK RECLINE KNOB | 1 | 2606404C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2607104C1 |
| CUSHION BACK INDV SEAT | 1 | 2608430C1 |
| COVER, SEAT CUSHION | 1 | 2514385C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
