3725173C91
SEAT, DRIVER SLEEPER, AIR, MORDURA, BLACK, DL ARM
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER SLEEPER, AIR, MORDURA, BLACK, DL ARM

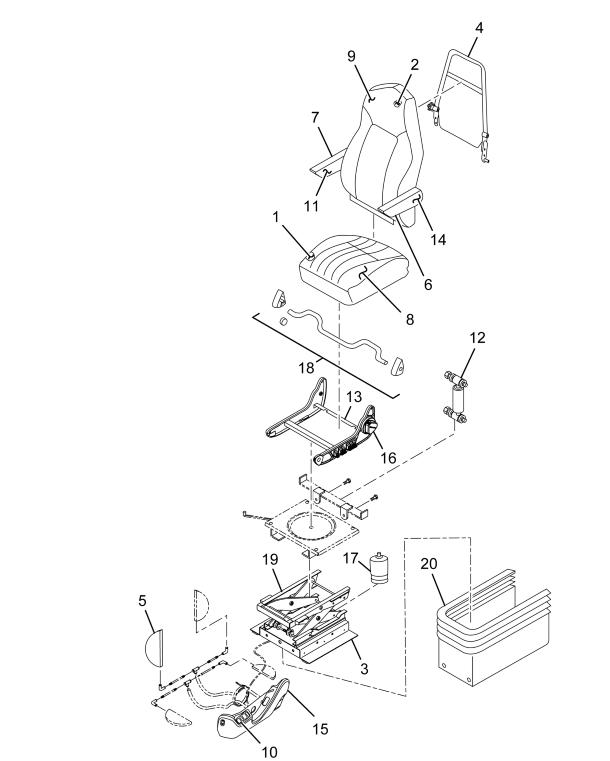

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT INDV SEAT | 1 | 2608426C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| COVER, ARMREST RIGHT HAND | 1 | 2607104C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 2594712C91 |
| FR, SEAT LOWER | 1 | 2594756C1 |
| COVER ARMREST | 1 | 2607103C1 |
| MANIFOLD, SEAT FOUR BUTTON | 1 | 2505477C1 |
| KIT, SEAT BACK RECLINE KNOB | 1 | 2606404C91 |
| CUSHION BACK INDV SEAT | 1 | 2608430C1 |
| PEDESTAL SEAT | 1 | 2603335C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| REST ARM | 1 | 2607100C1 |
| REST ARM RIGHT HAND | 1 | 2607101C1 |
| COVER SEAT CUSHION | 1 | 2608428C1 |
| COVER BACK CUSHION | 1 | 2608431C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
