3717167C91
SEAT, PASSENGER SEARS-ATLAS 70 PREMIUM COMFORT W/SLEEPER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,599.95
$1,919.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-050-000
OEM Description
SEAT, PASSENGER SEARS-ATLAS 70 PREMIUM COMFORT W/SLEEPER

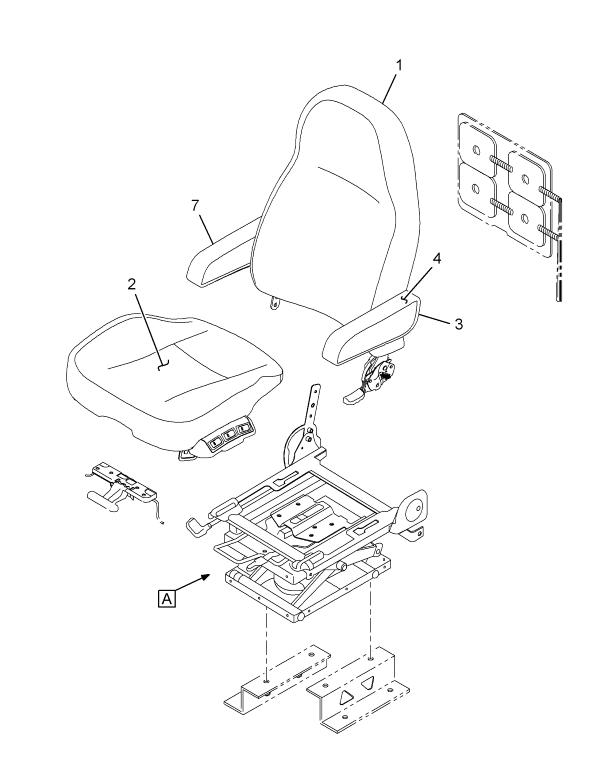

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BACK ASSEMBLY, SEAT | 1 | 2599477C1 |
| REST ARM LEFT | 1 | 2610486C1 |
| PLATE, COVER | 1 | 2593694C1 |
| SPRING, AIR SEAT | 1 | 2503317C1 |
| REST ARM RIGHT | 1 | 2610485C1 |
| RISER, SEAT SUPPORT LH | 1 | 2610492C1 |
| RISER, SEAT SUPPORT RIGHT HAND | 1 | 2610491C1 |
| SHAFT, BEARING SUSPENSION SEAT | 1 | 2593691C1 |
| MANIFOLD ,3 VALVE | 1 | 2610493C1 |
| VALVE INDV SUSPENSION (GRAY) | 1 | 2610496C1 |
| VALVE ,INDV LUMBAR (BACK) | 1 | 2610497C1 |
| SEAT, SUSPENSION | 1 | 2610498C1 |
| SKIRT, SEAT SUSPENSION | 1 | 2610489C1 |
CROSS REFERENCES
- SEARS M NRL21387SPNN
- SEARS M NRL21387SPNN
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
