3712396C92
SEAT, DRIVER SLEEPER, AIR, MORDURA, GRAY, DL ARM
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,049.95
$2,459.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, DRIVER SLEEPER, AIR, MORDURA, GRAY, DL ARM

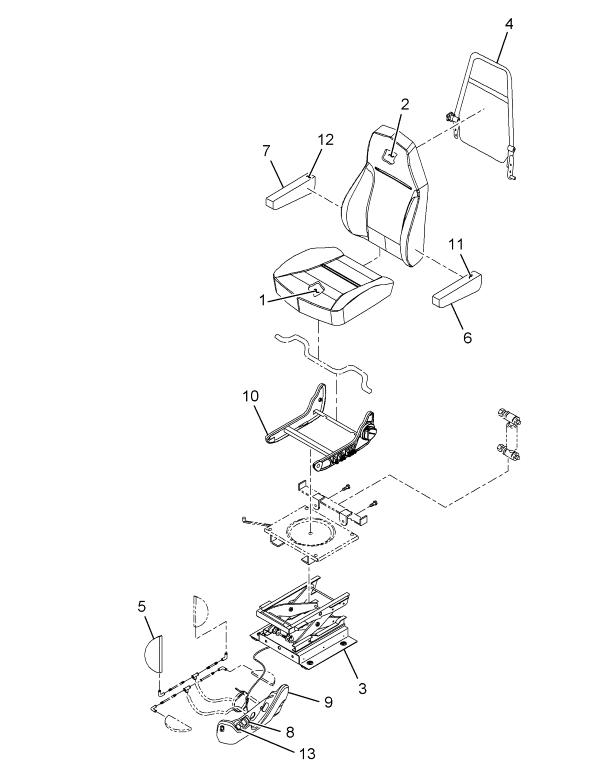

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR SEAT | 1 | 2603622C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| BASE SEAT MOUNTING | 1 | 2603614C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT ASSEMBLY AIR LUMBAR | 1 | 2594761C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST ARM LH | 1 | 2607778C1 |
| REST ARM RIGHT HAND | 1 | 2607779C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MODULE MM* | 1 | 2603618C1 |
| MANIFOLD SEAT AIR | 1 | 2603617C1 |
CROSS REFERENCES
- NATL ST 40059.44CF31B
- NATL ST 40059.44CF31B
- NATL ST 40059.44CF31B1
- NATL ST 40059.44CF31B1
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
