3707856C92
SEAT, DRIVER AIR SUSPENSION, VINYL WITH CLOTH INSERTS
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$2,399.95
$2,879.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
016-005-000
OEM Description
SEAT, DRIVER AIR SUSPENSION, VINYL WITH CLOTH INSERTS
Weight
128.27 lbs

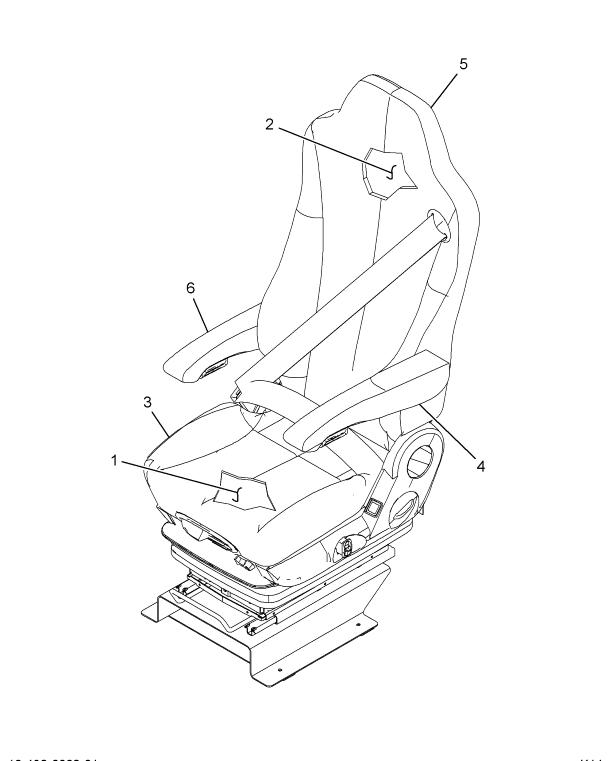

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION FOAM PAD | 1 | 2605656C1 |
| PAD, FOAM BACK PAD | 1 | 2608631C1 |
| COVER, SEAT CUSHION | 1 | 2608672C1 |
| REST, ARM LEFT HAND | 1 | 2608677C1 |
| COVER, BACK CUSHION | 1 | 2608673C1 |
| REST ARM RIGHT HAND | 1 | 2608676C1 |
| INSERT BOLSTER PAD | 1 | 2605655C1 |
| BOLT 1.25 X 16 | 1 | 2608620C1 |
| BRACKET REINFORCEMENT REAR | 1 | 2608621C1 |
| HOSE AIR CONNECTOR ASSEMBLY | 1 | 2608622C1 |
| BOLT SOCKET HEAD 1.25 X 20 | 1 | 2608623C1 |
| FASTENER XMAS TREE CUSHION TRIM | 1 | 2608624C1 |
| INSERT PLUS PAD CUSHION | 1 | 2608626C1 |
| SEAL, SEAT STRUCTURE | 1 | 2608674C1 |
| RISER, SEAT O/B DRIVER | 1 | 2608636C1 |
| RISER, SEAT I/B DRIVER | 1 | 2608637C1 |
CROSS REFERENCES
- GRAMAG C7NM-BGVY-50000-A
- GRAMAG C7NM-BGVY-50000-A
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
