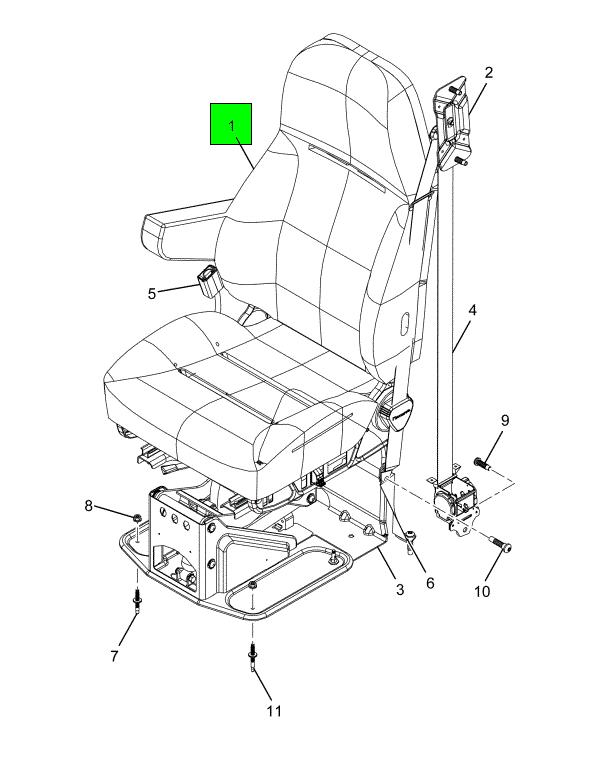

3699869C91
SEAT, DRIVER HIGH AIR SUSPENSION DUAL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$969.95
$1,163.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION DUAL
Weight
90.19 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, SEAT INDV SEAT | 1 | 2603249C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| COVER, SEAT CUSHION | 1 | 2603253C1 |
| COVER BACK CUSHION | 1 | 2603254C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| COVER ARMREST RIGHT HAND | 1 | 2603256C1 |
| CUSHION BACK INDV SEAT | 1 | 2603250C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | NSSK150401 |
| SUPPORT, SINGLE CHAMBER AIR LUMBAR | 1 | 2505855C1 |
| HANDLE, SEAT | 1 | 2512197C1 |
| REST ARM RIGHT HAND | 1 | 2603252C1 |
CROSS REFERENCES
- NATL ST 50424.42A02D
- NATL ST 50424.42A02D
- NATL ST 5042442A02D1
- NATL ST 5042442A02D1
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
