3696581C93
SEAT, OCCUPANT NATIONAL HIGH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$579.95
$695.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT OCCUPANT NATIONAL HIGH B

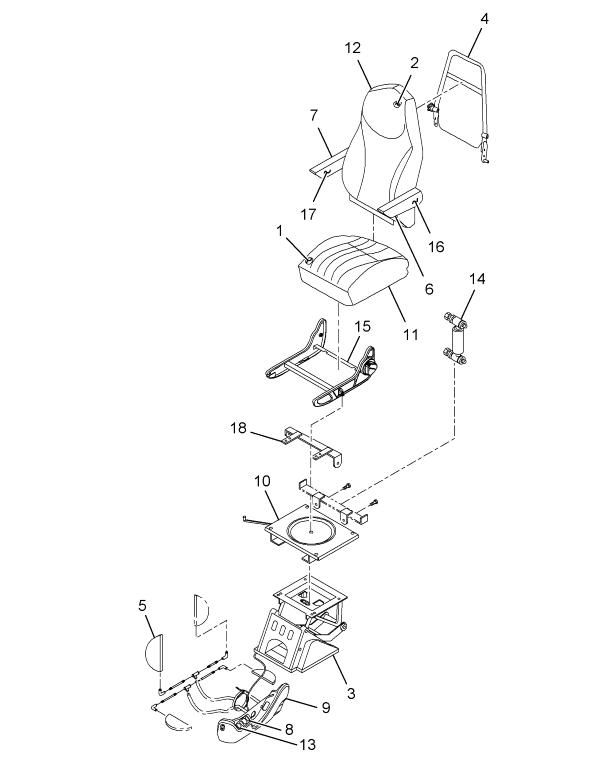

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| BASE, DRIVER SEAT MOUNTING SWIVEL | 1 | 2594770C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| ARMREST COVER LH | 1 | 2606401C1 |
| ARMREST COVER RIGHT HAND | 1 | 2606402C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| ARMREST UPHOLSTERY ASSEMBLY LH | 1 | 2606399C1 |
| ARMREST UPHOLSTERY ASSEMBLY RIGHT HAND | 1 | 2606400C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| SWITCH, LUMBAR CYCLER, SEAT SENSOR | 1 | 2594768C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
