3696576C93

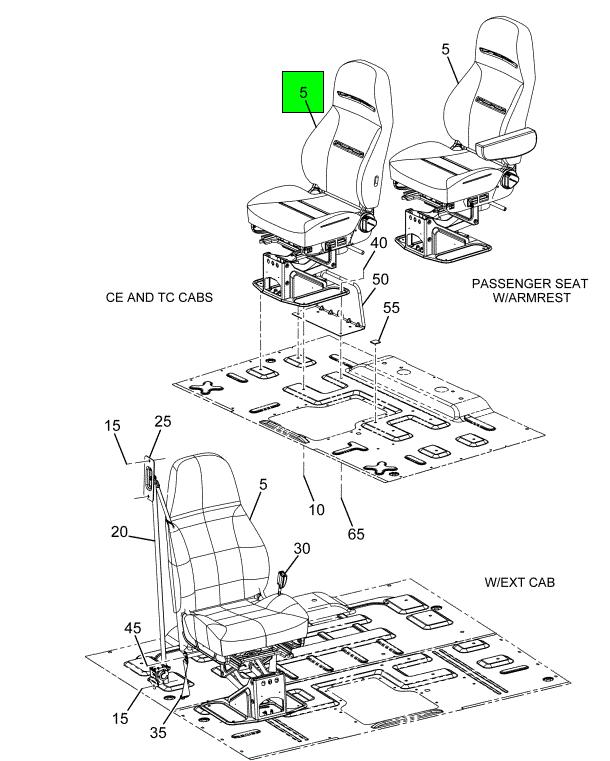

SEAT, PASSENGER HIGH SC W/COMP
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-000
OEM Description
SEAT, PASSENGER HIGH SC W/COMP
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT | 1 | 2602218C91 |
| COVER, BACK CUSHION CHARCOAL | 1 | 2597999C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2596196C1 |
| CUSHION, BACK MID CHRCL VINYL | 1 | 2596206C92 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, SEAT BACK HIGH BACK | 1 | 2585431C1 |
| REST ARM LH | 1 | 2606972C1 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| COVER ARMREST LH | 1 | 2606974C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606975C1 |
| KIT, SEAT ADJUSTER TRACK | 1 | 2501703C91 |
| KIT, SHAFT SEAT WITH BUSHING | 1 | 1660393C91 |
| KIT, COMPRESSOR ASSEMBLY | 1 | 2587144C91 |
| COVER SEAT CUSHION CHAR | 1 | 2597998C2 |
CROSS REFERENCES
- NATL ST 50550.30AW1C1
- NATL ST 50550.30AW1C1
- NATL ST 5055030AW1C
- NATL ST 5055030AW1C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
