3692298C93
SEAT, PASSENGER CLOTH, WITH TOOL BOX, FIXED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$819.95
$983.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
014-010-000
OEM Description
SEAT, PASSENGER CLOTH, WITH TOOL BOX, FIXED

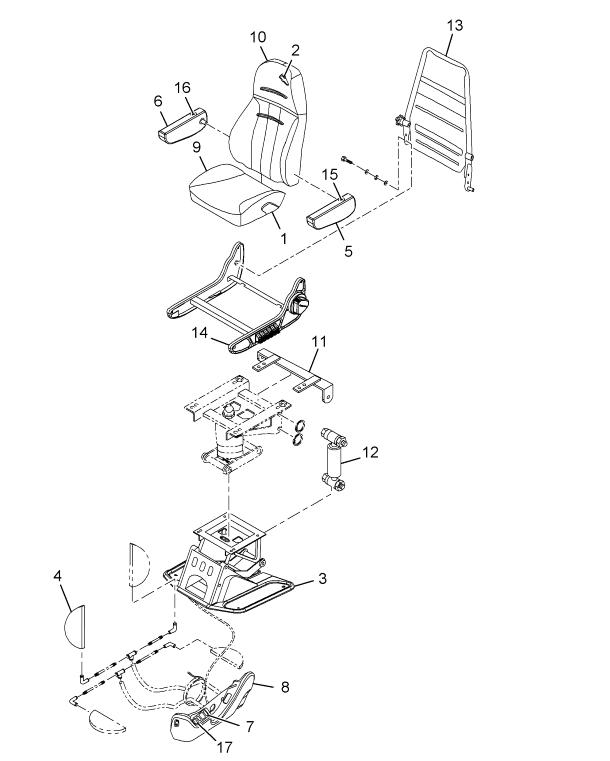

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT | 1 | 2602218C91 |
| COVER, BACK CUSHION CHARCOAL | 1 | 2597999C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| COVER ARMREST LH | 1 | 2606974C1 |
| COVER ARMREST RIGHT HAND | 1 | 2606975C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| CUSHION, HIGH-BACK CHARCOAL VINYL | 1 | 2595317C91 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| REST ARM LH | 1 | 2606972C1 |
| REST ARM RIGHT HAND | 1 | 2606973C1 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| COVER, BACK SEAT CHARCOAL | 1 | 2597998C1 |
CROSS REFERENCES
- NATL ST 50309.32AW1C2
- NATL ST 50309.32AW1C2
- NATL ST 5030932AW1C
- NATL ST 5030932AW1C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
