3692287C92
SEAT, DRIVER HIGH AIR SUSPENSION DUAL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$629.95
$755.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION DUAL

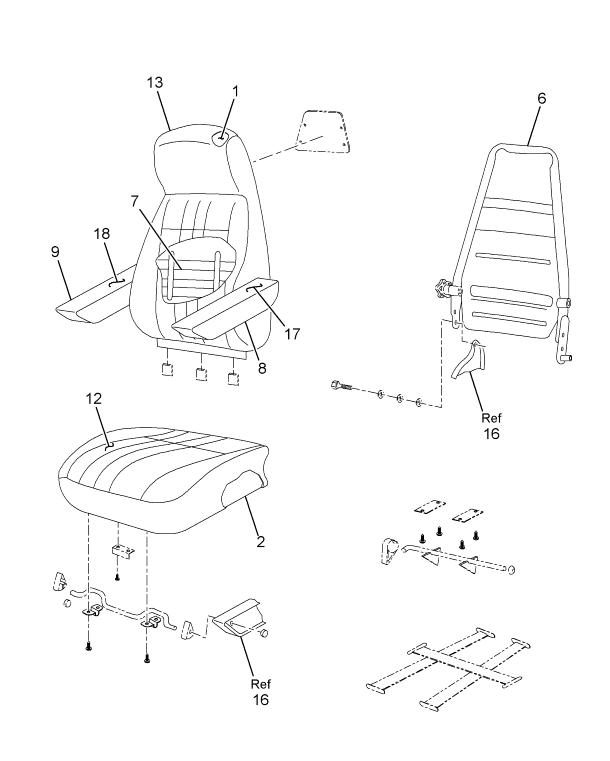

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION, BACK AIR LUMBAR CHARCOAL CLOTH | 1 | 2595486C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| COVER, CUSHION SEAT | 1 | 2598018C1 |
| COVER, CUSHION BACK | 1 | 2598019C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| CUSHION, SEAT INDV SEAT | 1 | 2602846C1 |
| BASE, DRIVERS SEAT | 1 | 2587141C91 |
| FR, HIGH BACK SEAT | 1 | 2589583C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| REST, ARM LEFT | 1 | 2607311C1 |
| REST, ARM LEFT | 1 | 2595002C1 |
| SENSOR OCCUPANT SENSOR | 1 | 2604078C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2607312C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2595003C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
