3692286C92
SEAT, DRIVER HIGH AIR SUSPENSION VINYL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$639.95
$767.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION VINYL

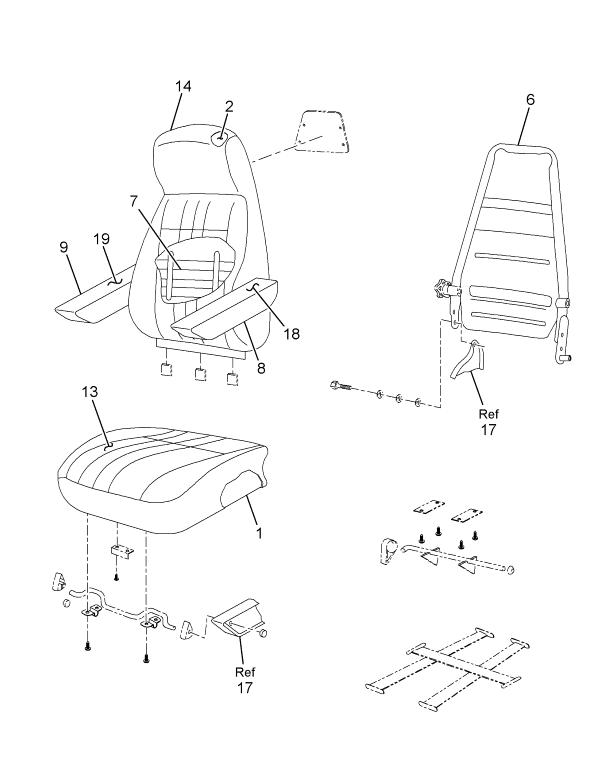

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CUSHION SEAT | 1 | 2602218C91 |
| VALVE, HIGH PRESSURE AIR RED HANDLE | 1 | 2505475C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| COVER, BACK SEAT CHARCOAL | 1 | 2597998C1 |
| COVER, BACK CUSHION CHARCOAL | 1 | 2597999C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505826C1 |
| UPHOLSTERY, ARMREST RIGHT HAND | 1 | 2592524C1 |
| UPHOLSTERY, ARMREST LH | 1 | 2602219C1 |
| CUSHION, HIGH-BACK CHARCOAL VINYL | 1 | 2595317C91 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| FR, HIGH BACK SEAT | 1 | 2589583C1 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1698107C1 |
| REST, ARM LEFT | 1 | 2607311C1 |
| REST, ARM LEFT | 1 | 2595002C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2607312C1 |
| REST, ARM RIGHT HAND RIGHT | 1 | 2595003C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
