3692262C92
SEAT, PASSENGER 1/3 HIGH BACK
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$509.95
$611.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, PASSENGER 1/3 HIGH BACK

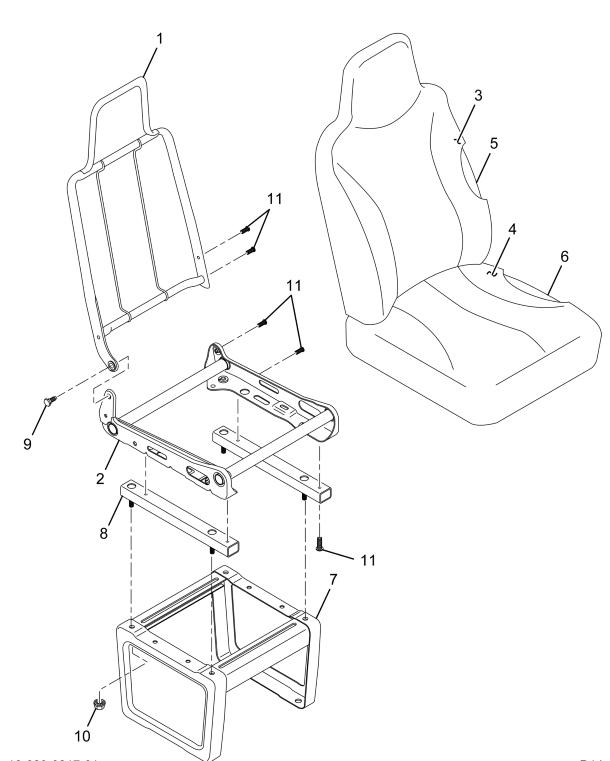

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT BACK BUCKET | 1 | 2505733C1 |
| FR, SEAT BACK BUCKET | 1 | 2505732C1 |
| PAD, CUSHION BUCKET SEAT HIGH BACK | 1 | 2593761C1 |
| PAD, CUSHION BUCKET SEAT | 1 | 2593762C1 |
| RISER, SEAT | 1 | 2505727C1 |
| SPACER, BUCKET SEAT MOUNTING | 2 | 2505735C1 |
| BUTTON, SEAT | 1 | 2593911C1 |
| SWITCH SEAT SENSOR | 1 | 2602249C1 |
| CONNECTOR, BODY 5 WAY MALE | 1 | 1661260C1 |
| LOCK, CONNECTOR BODY | 1 | 1661264C1 |
| TERMINAL, CABLE MALE | 1 | 1661262C1 |
| PAD, SEAT INSERT | 1 | 2602250C1 |
| PAD, SEAT TOP LAYER | 1 | 2602251C1 |
| PAD, SEAT TOP FOR 3/3 ONLY | 1 | 2602252C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
