3689815C91
SEAT, DRIVER HIGH AIR SUSPENSION CLOTH 3- AIR LUM W/A/R W/BUS
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION CLOTH 3- AIR LUM W/A/R W/BUS

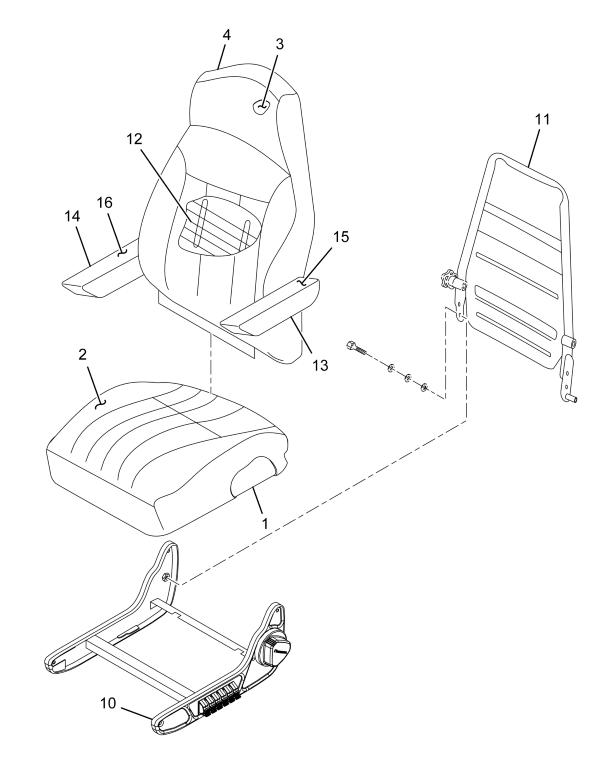

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, SEAT LOWER | 1 | 2505985C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST, ARM CHARCOAL VINYL LEFT HAND | 1 | 2596491C1 |
| REST ARM RIGHT HAND CHRCL VINYL | 1 | 2602411C1 |
| COVER, ARMREST SEAT LEFT | 1 | 2597993C1 |
| COVER SEAT ARMREST RIGHT HAND | 1 | 2602412C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| COVER, CUSHION SEAT | 1 | 2598018C1 |
| COVER, BACK CUSHION | 1 | 2600569C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
