3689814C91
SEAT DRIVER HI AIR SUSP CLOTH
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$649.95
$779.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION CLOTH 3- AIR LUMBAR FOR BUS

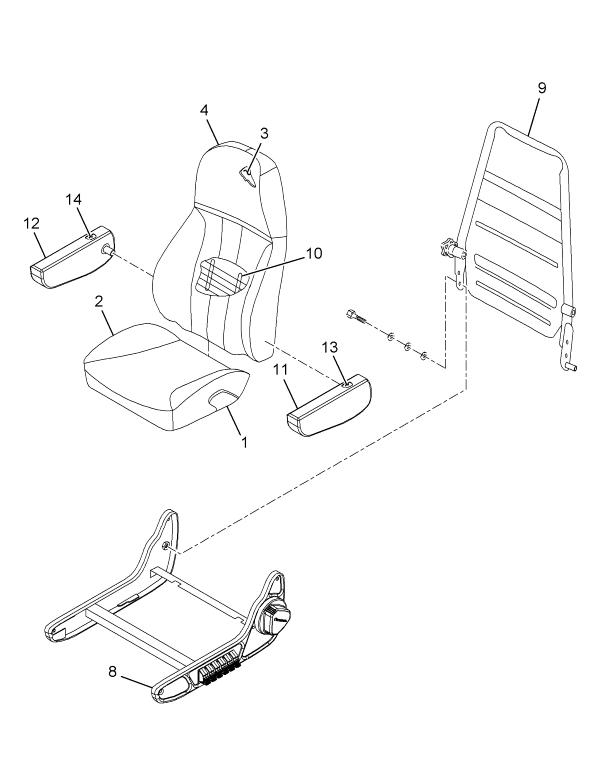

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| SUPPORT, SEAT AIR LUMBAR | 1 | 1697099C1 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 2509416C91 |
| SUPPORT, ASSEMBLY SEAT AIR LIMBAR | 1 | 1699520C1 |
| REST, ARM CHARCOAL VINYL LEFT HAND | 1 | 2596491C1 |
| REST ARM RIGHT HAND CHRCL VINYL | 1 | 2602411C1 |
| VALVE, LOW PRESSURE AIR GRAY HANDLE | 1 | 2505476C1 |
| MANIFOLD, SEAT TWO BUTTON | 1 | 2505829C1 |
| BRACKET, MOUNTING SEAT BELT | 1 | 2505888C1 |
| PEDESTAL, SEAT | 1 | 2505907C91 |
| ABSORBER, SHOCK ABSORBER SEAT | 1 | 507831C91 |
| FR, SEAT LOWER | 1 | 2505985C1 |
| FRAME, SEAT BACK | 1 | 2597791C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
