3687152C91
SEAT, DRIVER BOSTROM LIBERTY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,149.95
$1,379.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT DRIVER BOSTRM LIBERTYAIR

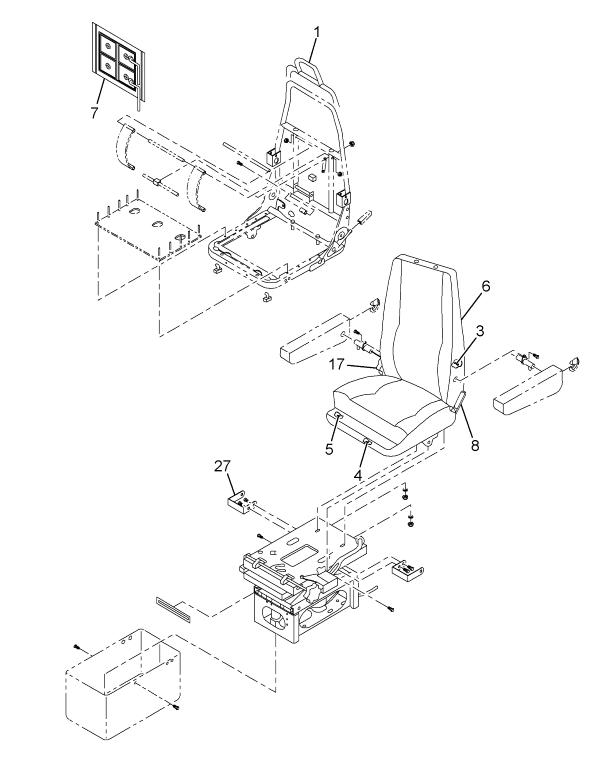

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR ASSEMBLY, SEAT | 1 | 2599976C1 |
| KNOB, PEDESTAL SEAT ADJUSTING | 1 | 2500386C1 |
| KNOB, PEDESTAL SEAT ADJUSTING | 1 | 2509421C1 |
| SEAT ASSEMBLY, SUSPENSION | 1 | 2599984C1 |
| RISER, SEAT SUPPORT | 1 | 2593266C1 |
| PAD, CUSHION MID BACK SEAT | 1 | 2506818C1 |
| PAD, SEAT CUSHION | 1 | 2585988C1 |
| COVER, SEAT | 1 | 2599978C1 |
| COVER, BACK SEAT | 1 | 2599977C1 |
| HANDLE, RECLINER | 1 | 2599979C1 |
| HANDLE | 1 | 2599980C1 |
| HINGE ASSEMBLY | 1 | 2599983C1 |
| BAG, AIR (BOSTROM ROUTEMASTER) | 1 | 1696124C91 |
| BAG, AIR (BOSTROM ROUTEMASTER) | 1 | 442059101 |
CROSS REFERENCES
- BOSTROM 2352064-K66
- BOSTROM 2352064-K66
- BOSTROM 2352064K66
- BOSTROM 2352064K66
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
