3686753C92
SEAT, DRIVER HIGH AIR SUSPENSION VINYL AIR LUMBAR W/SWIVEL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$829.95
$995.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-037-002
OEM Description
SEAT, DRIVER HIGH AIR SUSPENSION VINYL AIR LUMBAR W/SWIVEL

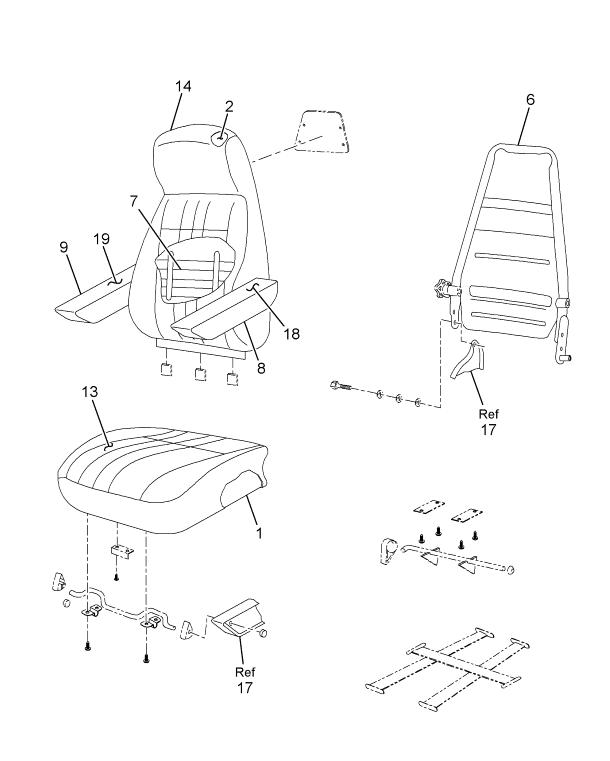

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| Seat Charcoal Vinyl Cushion | 1 | 2594999C91 |
| High Pressure Air Red Handle Valve | 1 | 2505475C1 |
| Seat Two Button Manifold | 1 | 2505829C1 |
| Back Seat Charcoal Cover | 1 | 2597998C1 |
| Back Cushion Charcoal Cover | 1 | 2597999C1 |
| Mounting Seat Belt Bracket | 1 | 2505888C1 |
| Shock Absorber Seat Absorber | 1 | 507831C91 |
| Seat Lower Front | 1 | 2505826C1 |
| Cover Armrest Left Hand | 1 | 2606974C1 |
| Cover Armrest Right Hand | 1 | 2606975C1 |
| High Back Charcoal Vinyl Cushion | 1 | 2595317C91 |
| Low Pressure Air Gray Handle Valve | 1 | 2505476C1 |
| Seat Pedestal | 1 | 2505907C91 |
| Seat Back Frame | 1 | 2597791C1 |
| Seat Air Lumbar Support | 1 | 1698107C1 |
| Rest Arm Left Hand | 1 | 2606972C1 |
| Driver Seat Mounting Swivel Base | 1 | 2502306C1 |
| Rest Arm Right Hand | 1 | 2606973C1 |
CROSS REFERENCES
- NATL ST 50407.32A00C1
- NATL ST 50407.32A00C1
- NATL ST 5040732A00C
- NATL ST 5040732A00C
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
